With the new TF3-360SC series, Jonsbo is making a clear statement in the field of all-in-one water cooling systems. The two models TF3-360SCW (White) and TF3-360SCB (Black) combine powerful cooling technology with a unique design highlight: a total of four integrated displays enable detailed monitoring of system parameters – or the playback of your own content. This positions the series not only as a powerful solution for modern systems, but also as a visual eye-catcher for showcases.
Key features at a glance:
- 3.5-inch main display on the pump with 640 × 480 pixels
- Three additional 3.38-inch displays on the fan module (640 × 180 pixels each)
- Support for MP4, GIFs, JPGs and hardware monitoring via software
- 360 mm radiator with PWM fans (700-2400 rpm, max. 62.4 CFM)
Innovation in detail: four displays for full control and customization

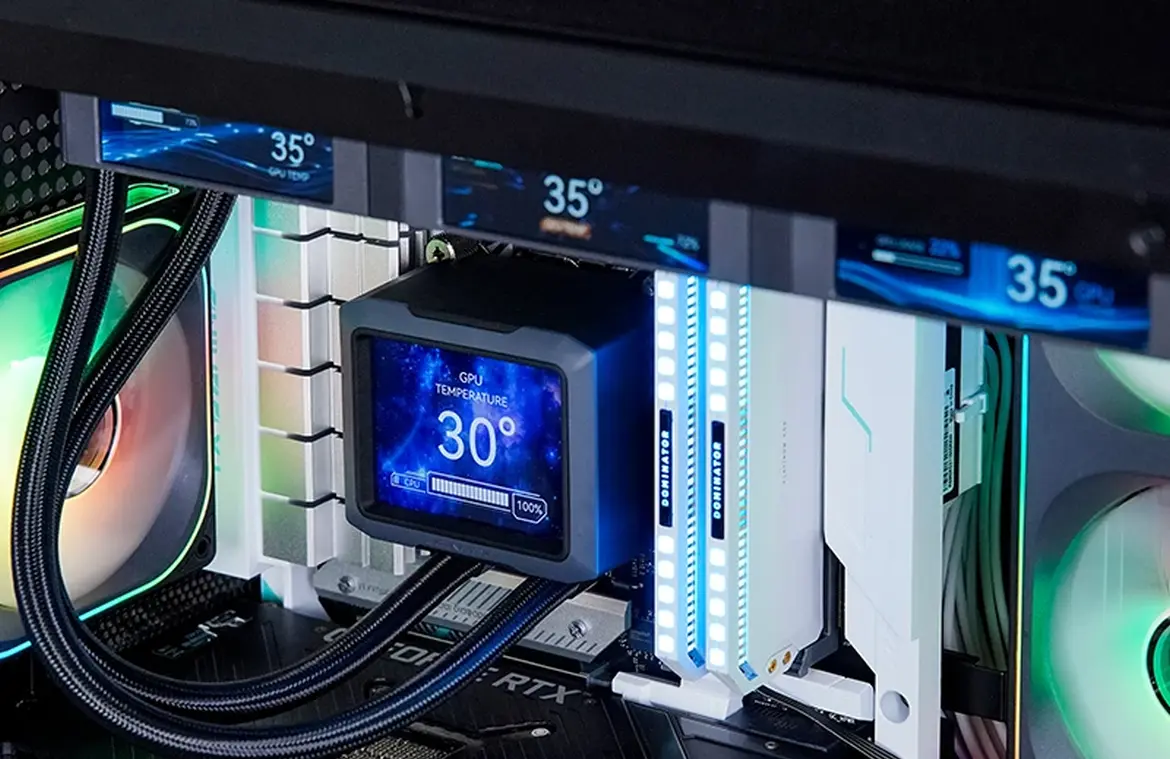

What was previously considered a luxury for many AiO coolers – a display on the pump – has been significantly expanded in Jonsbo’s TF3 series. In addition to the central 3.5-inch main screen on the pump, the three modules mounted on the fans are each equipped with their own screen. These measure 3.38 inches and can be configured in a variety of ways using Jonsbo’s own software. Users can choose between classic hardware monitoring (temperatures, clock rates, speeds) or the playback of individual content – from animated GIFs to small MP4 videos.
This means that cooling not only offers functional added value, but also a new form of individualization and staging. Especially in cases with glass fronts or RGB elements, new possibilities open up for a visually coordinated setup. The focus is clearly on visual feedback in real time – a function that is both practical and entertaining in everyday life.
Performance meets compatibility
The radiator of the TF3-360SC series is based on a classic 360 mm layout and measures 397 × 120 × 27 mm. The three supplied PWM fans with a diameter of 130 mm slightly tower over the radiator and ensure sufficient cooling performance with an air flow rate of up to 62.4 CFM – even with powerful CPUs. The speed ranges from 700 to 2400 rpm. With a maximum noise level of 37.3 dB(A), the fans remain within a tolerable range even under load.
The built-in pump operates at 2,500 rpm and, according to the manufacturer, is below the 30 dB(A) mark. This makes the AiO cooling system suitable for systems where noise is a critical factor – for example in streaming or content creation setups.
In terms of compatibility, the TF3-360SC series is broadly positioned. All common sockets of the current Intel and AMD platforms are supported, including Intel LGA 115X, 1200, 1366, 1700, 1851 as well as AMD AM4 and AM5. This means that the series is not only visually future-proof, but also technically future-proof.
Conclusion: Promising eye-catcher with solid technology
With the TF3-360SCW and 360SCB, Jonsbo is launching an AiO water cooling system on the market that deliberately sets itself apart from the mainstream. Four customizable displays, combined with powerful technology and solid compatibility, make the series an interesting option for anyone who wants to combine function and aesthetics.
Price and availability:
Jonsbo has not yet officially announced a price or release date. However, in view of the features, it is likely to be positioned in the premium segment. Further details can be found on the official product website.
