With the Meshify 3, Fractal Design brings a breath of fresh air to the popular Meshify series, which has long since made a name for itself among PC enthusiasts. The new generation promises not only a revised design, but also functional improvements in terms of cooling, modularity and RGB control.
The case is available in several versions: either with a closed side panel, with or without RGB fans, or – as in our case – as an Ambience Pro version, which offers both addressable RGB fans and subtle RGB accents in the interior. The color options are black (with slightly tinted side panel) and white (with clear glass). The Meshify 3 is also available in two sizes – as a more compact standard version and as a more spacious XL model with an extended interior.
In this test, we focus on the Meshify 3 Ambience Pro RGB Black, currently the highest-quality version in the series. In the following review, we will find out whether the case meets the requirements of gamers and hardware enthusiasts.
Technical details
| Model: | Fractal Design Meshify 3 Ambience Pro RGB Black |
| Case type: | Midi-Tower |
| Dimensions: | 229 x 507 x 433 mm (W x H x D) |
| Weight: | 9.10 kg |
| Material: | Steel, tempered glass, plastic |
| Available colors: | Black (Black TG Light Tint) |
| Front ports: | 1x USB-C 3.2 Gen 2×2, 2x USB-A 3.0, 1x 3.5 mm jack (line-in/out) |
| Expansion slots: | 7 horizontal slots |
| Form factors: | ATX, Micro-ATX, Mini-ITX, limited E-ATX (up to 277 mm width) |
| Ventilation: | 3x 140 mm RGB fans at the front (incl.), optional: 2x 140 mm or 3x 120 mm at the top, 1x 120 mm at the rear |
| Radiators: | Front: up to 360 mm, Top: up to 280 mm, Rear: 120 mm |
| Max. CPU cooler height: | 173 mm |
| Max. Graphics card length: | 349 mm |
| Max. Power supply length: | 180 mm |
| Price: | € 219.21 * |
Scope of delivery
The scope of delivery of the Fractal Design Meshify 3 Ambience Pro RGB is just as well thought out as the case itself – compact, complete and clearly packaged. The case comes in sturdy, printed cardboard packaging.

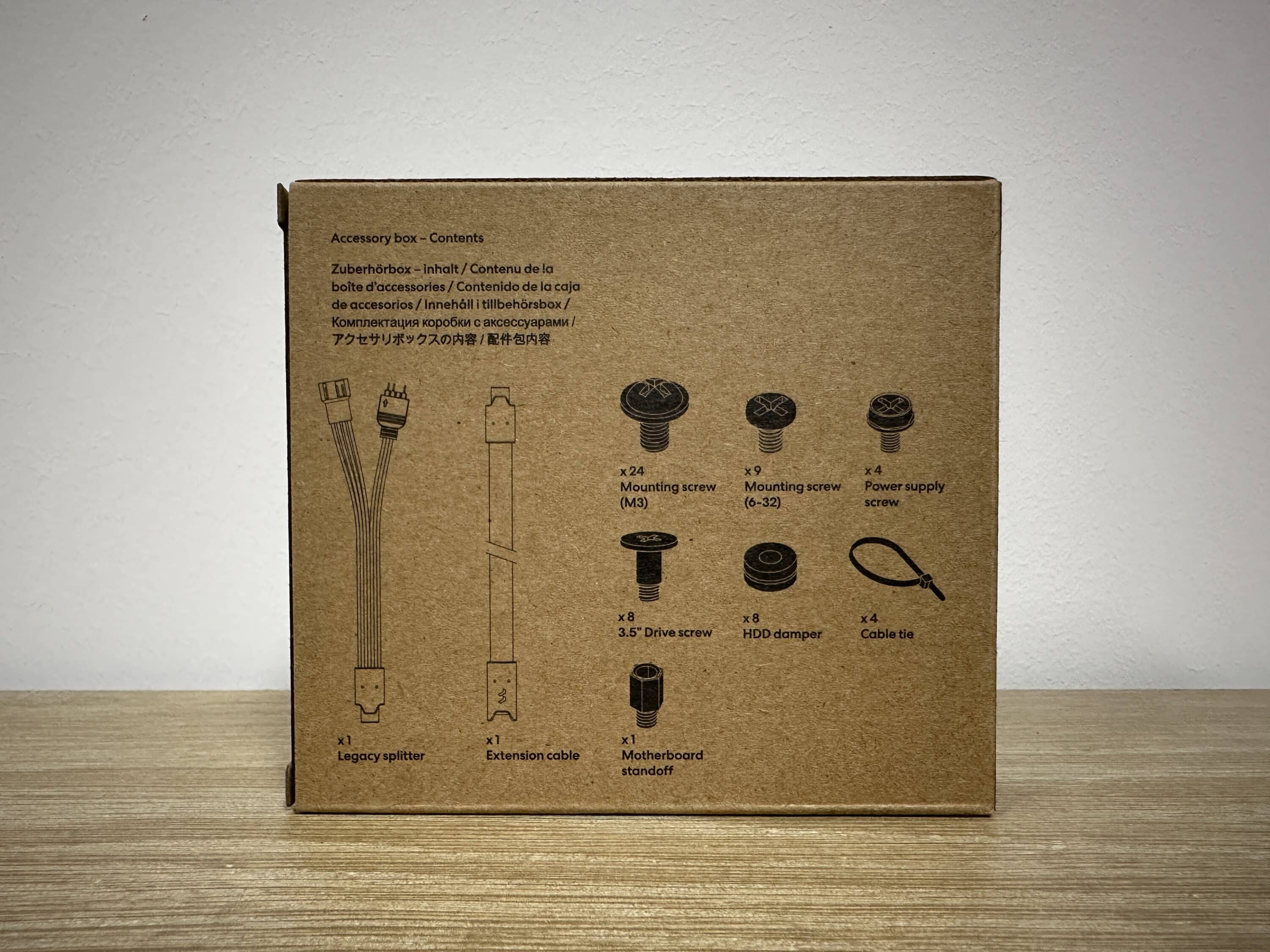

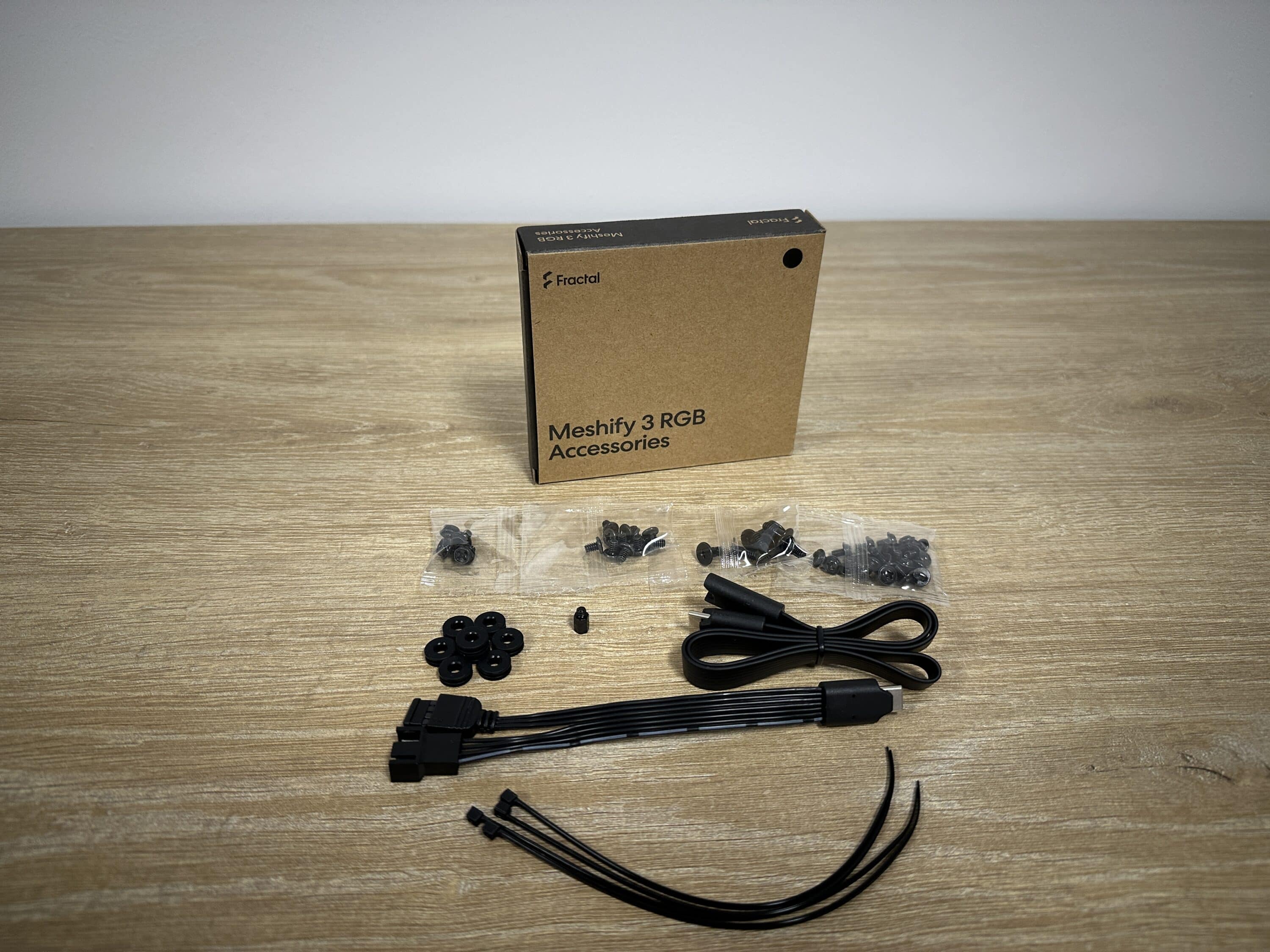

In addition to the case itself, the package contains a useful selection of accessories: These include all screws for mounting the mainboard, power supply unit, fans and drives, suitable hard disk fasteners and several cable ties for neat cable management. The screws are packed in separate bags and clearly labeled on the outside of the packaging – this saves time and nerves during assembly.
Fractal also includes an extension cable for the RGB lighting, as well as a legacy splitter that ensures the compatibility of the fans with the Adjust Pro Hub – a clever solution for anyone who wants to control their RGB setup flexibly.

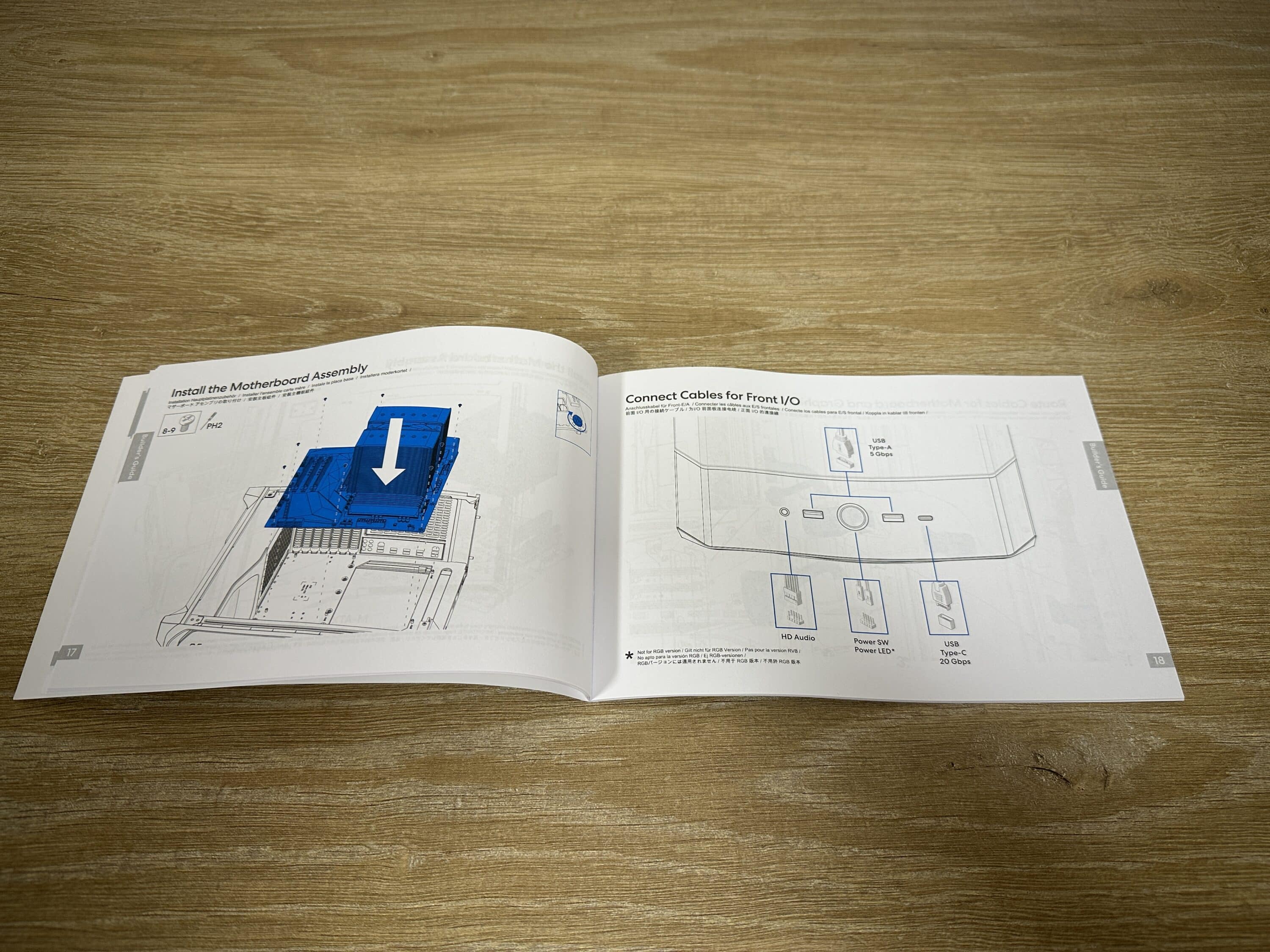

The scope of delivery is rounded off by clearly designed and illustrated installation instructions. This not only guides you through the basic installation of the hardware, but also explains key features such as drive installation, access to hidden cable paths and the use of the RGB system.
Overall, the scope of delivery is very user-friendly and of high quality – in line with the premium orientation of the case.
Exterior impression
The Fractal Design Meshify 3 Ambience Pro RGB presents itself in a modern, compact format that looks familiar at first glance – and yet reveals numerous sophisticated details. The overall design is somewhat shorter than that of many comparable midi towers, which is reflected in the limited space in the lid, among other things: There is only room for radiators up to a size of 280 mm.
The left-hand side is dominated by a large side panel made of tempered glass. This is slightly dark tinted, but provides a clear view of the inner workings of the system. The tint not only looks elegant, but also enhances the atmospheric effect of the integrated ARGB lighting without obscuring details. The glass is flush with the surface and gives the case an elegant touch – typical of Fractal Design’s high-quality appearance.

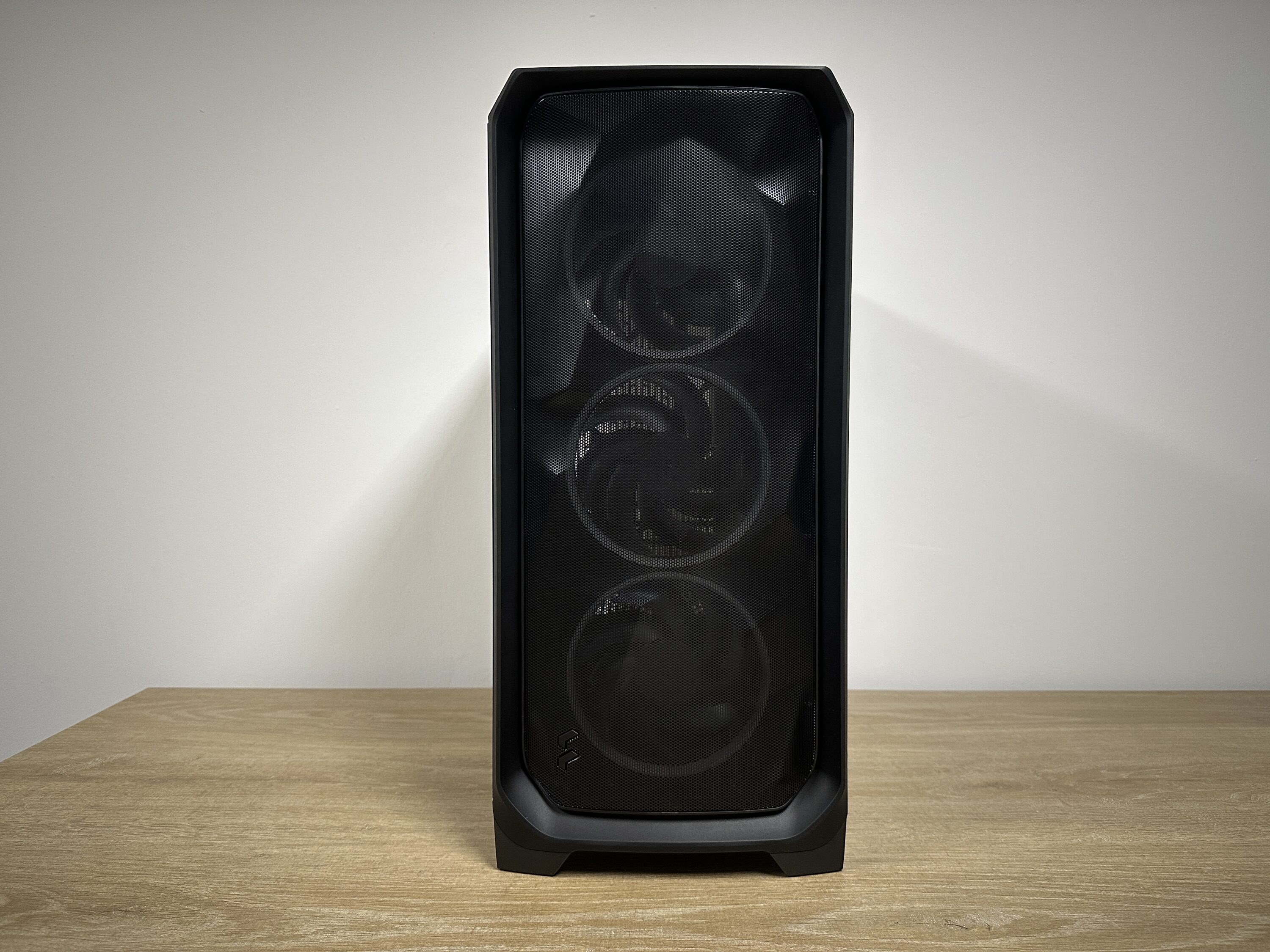

The most striking design feature remains the characteristic mesh front with facet structure, which gives the Meshify series its name. The front section is slightly protruding and extends into the side profile in clear, beveled lines – a stringent design element that gives the housing a striking, dynamic silhouette.
Functionally, the mesh front impresses with maximum airflow, which not only benefits the cooling performance, but also optimally accentuates the RGB fans inside. The Fractal logo is discreetly framed at the bottom left – unobtrusive and stylish.
The right side of the case remains functional and simple. The panel is completely closed and deliberately dispenses with viewing windows or special features. This leaves more space for effective cable management behind the mainboard tray.

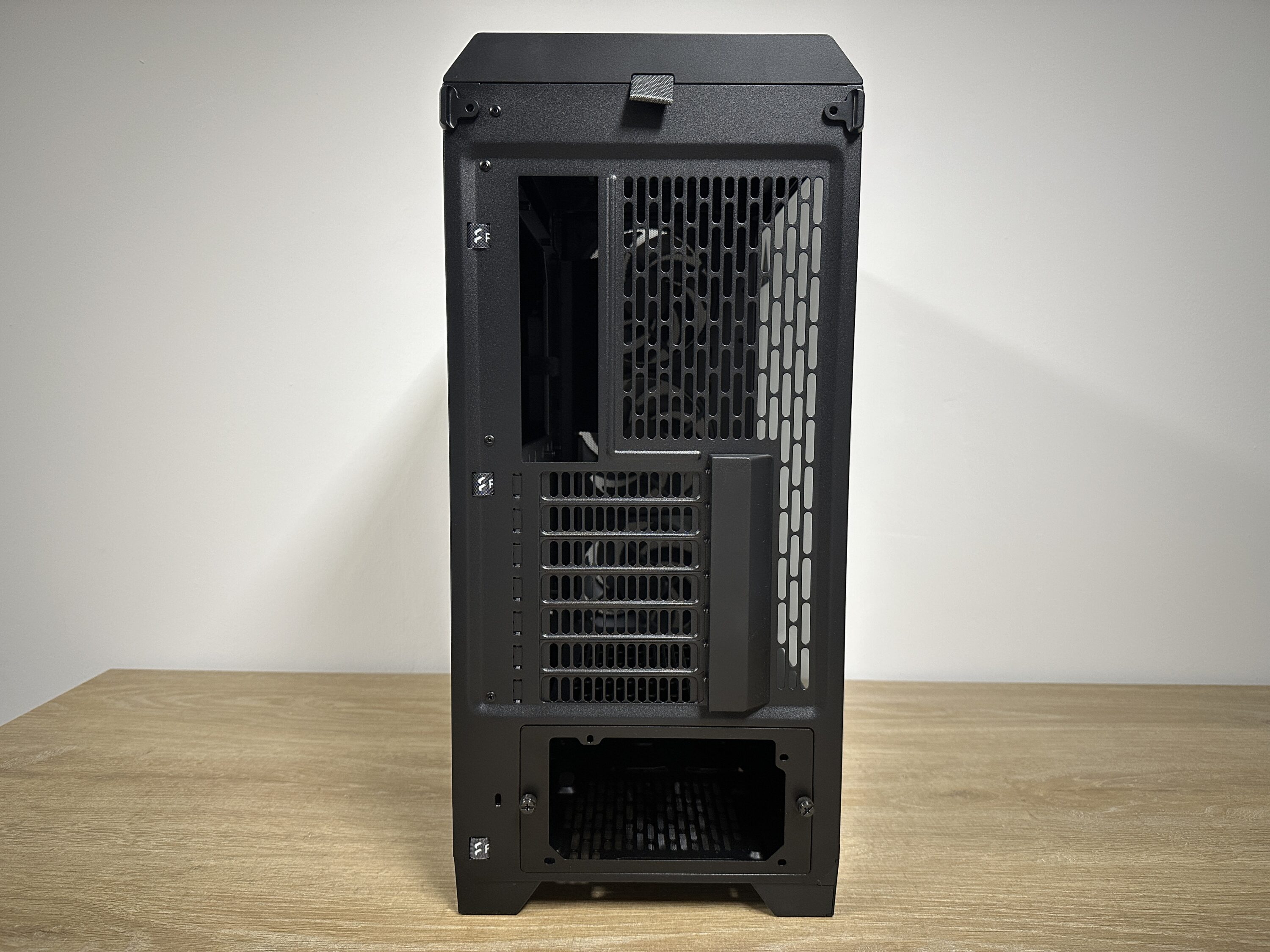

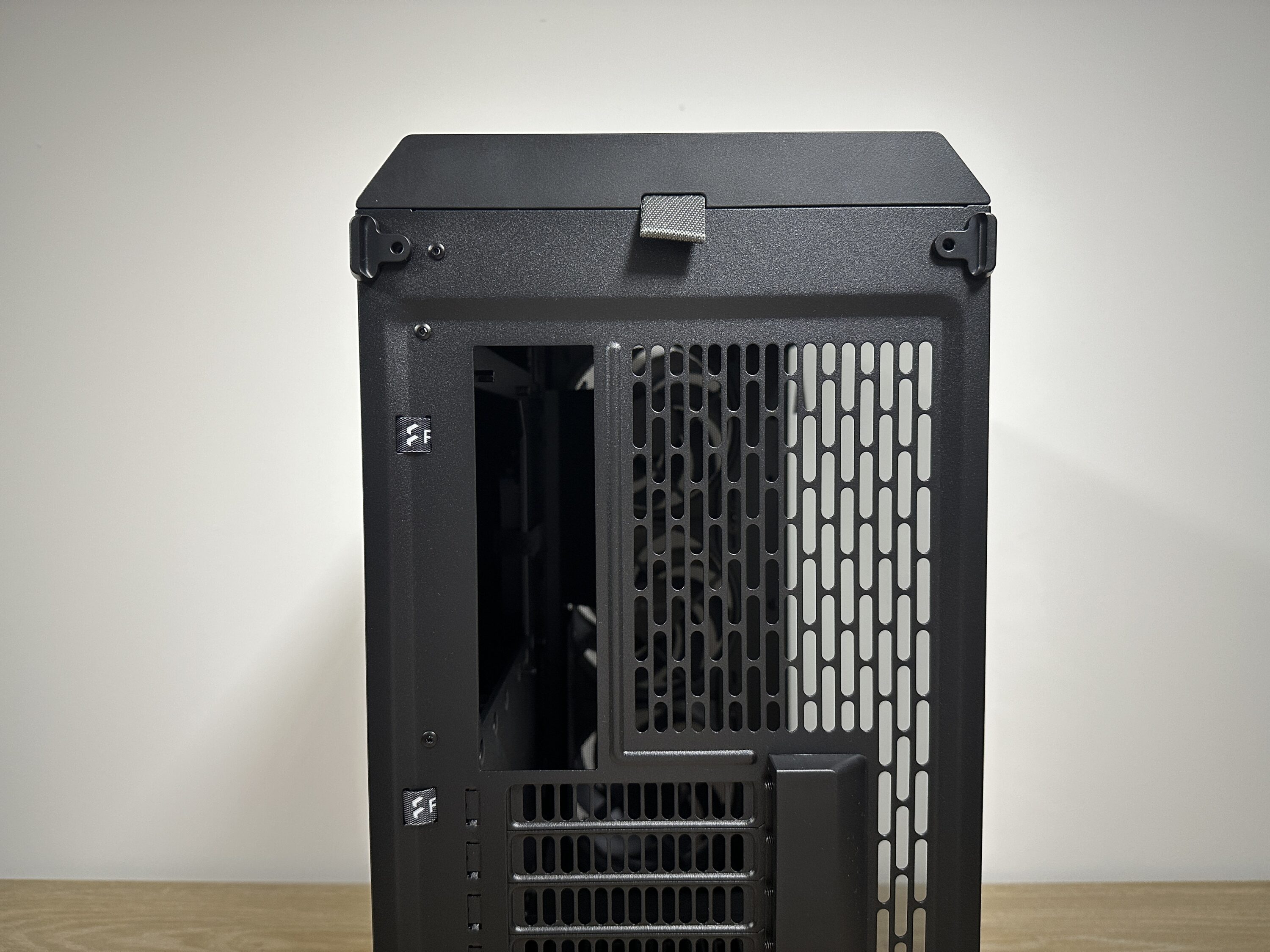

The rear of the Meshify 3 has a clear, functional layout: In the upper area there is a fabric flap that can be used to release the lid without tools. Directly underneath is a large perforation for the rear 120 mm fan.

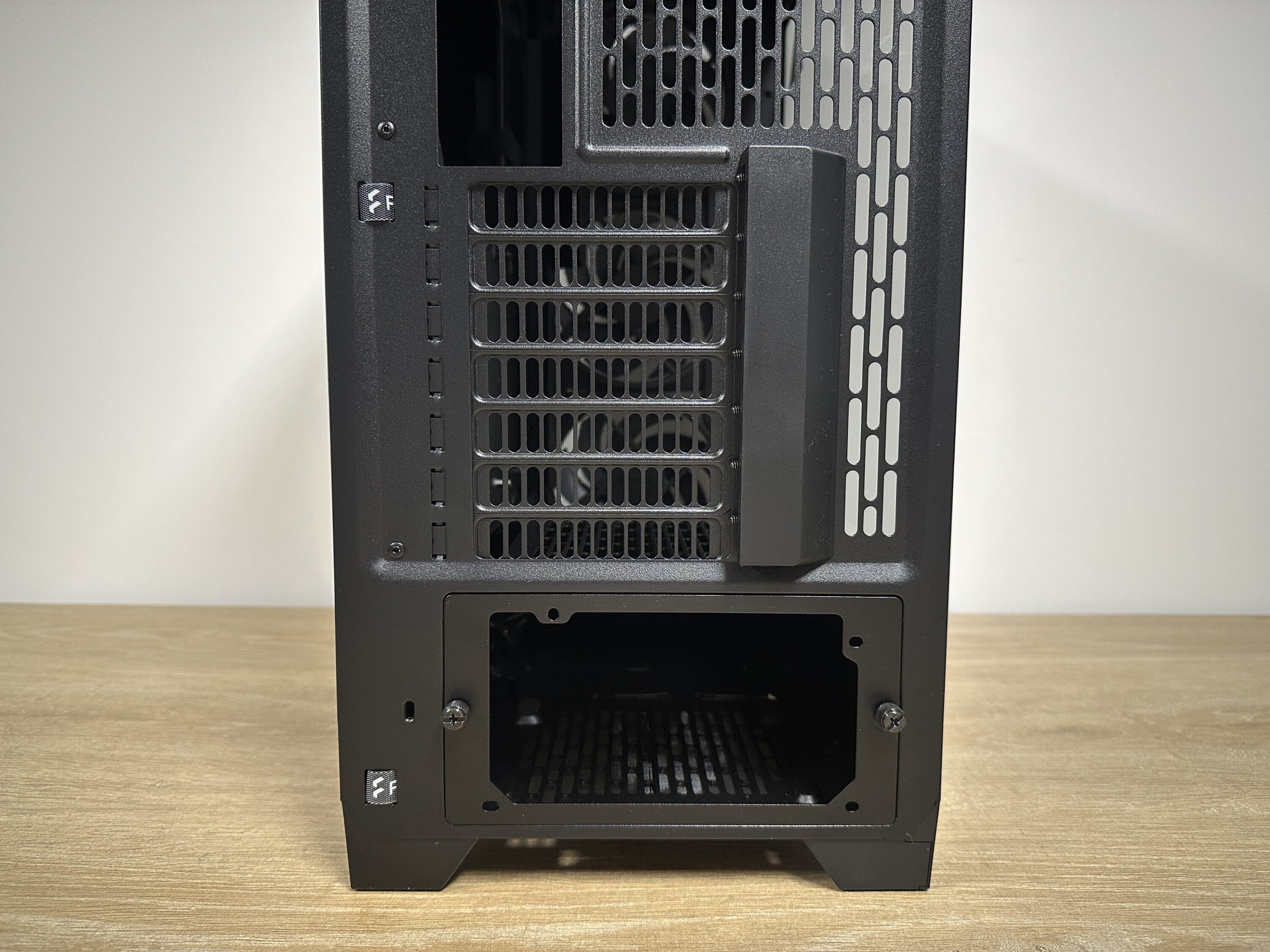

The PCI slots in the middle segment are concealed behind a removable panel, which ensures a tidy, clean look. The power supply slot is located in the lower area, equipped with a stable mounting frame for easy installation.
At the top, a largely perforated cover dominates the impression – functional and striking in design. It can be easily removed using the aforementioned fabric flap and then reveals a removable mounting frame for radiators or fans – ideal for custom setups.
The modern I/O panel is located in the front lid area:
1x USB-C 3.2 Gen 2×2 (20 Gbps)
2x USB-A 3.0
1x 3.5 mm jack
and the power button – neatly recessed and intuitively accessible.

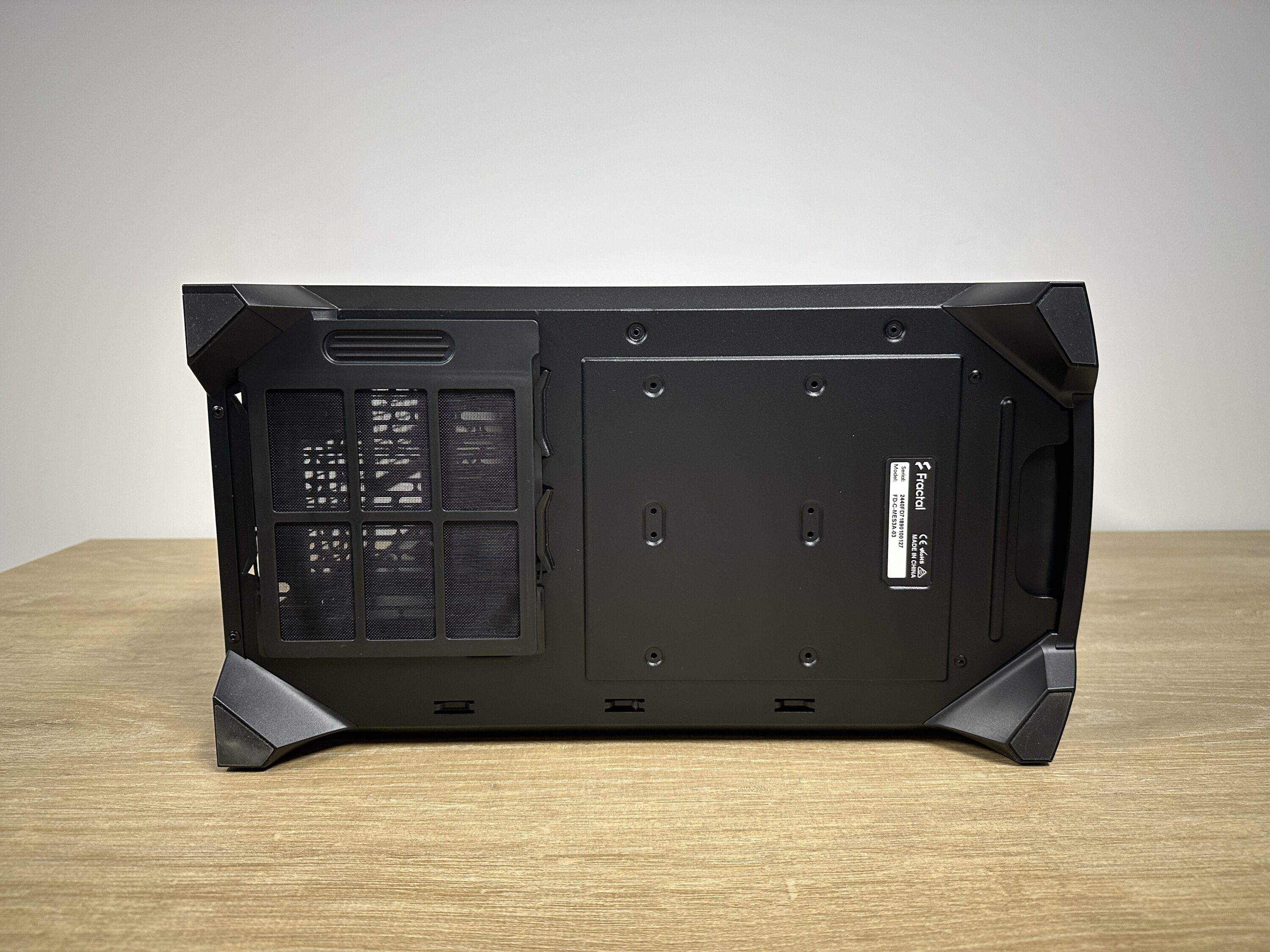

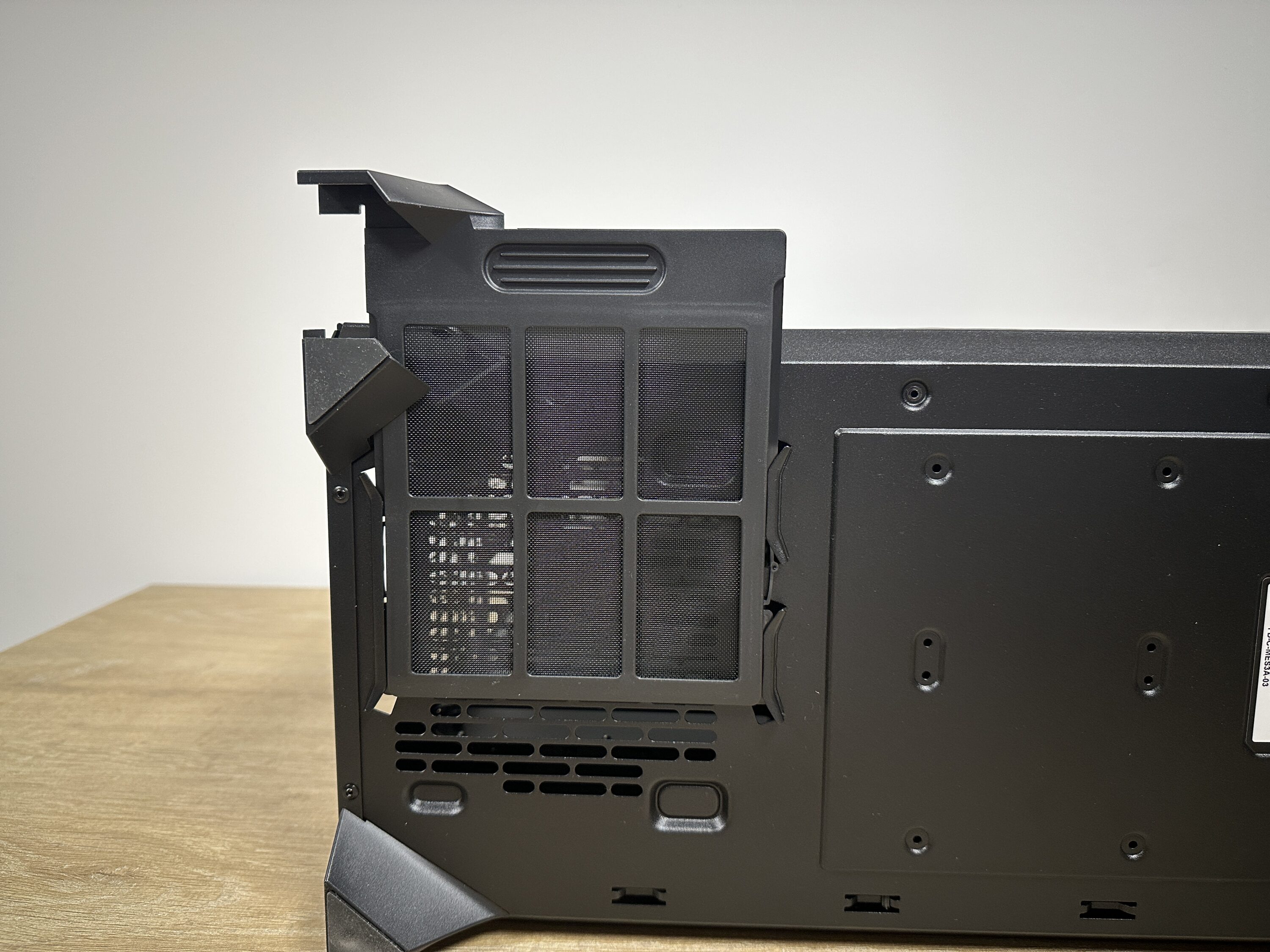

The base of the case is largely closed, but allows air to enter the power supply unit through a generously dimensioned grille. This is protected by a removable dust filter, which can be easily removed for cleaning.
The four rubberized feet ensure a non-slip grip and good decoupling from the surface. A small but well thought-out detail: There is a recess in the front area that allows the mesh front panel to be easily removed – for maintenance or cleaning, for example.
Interior impression

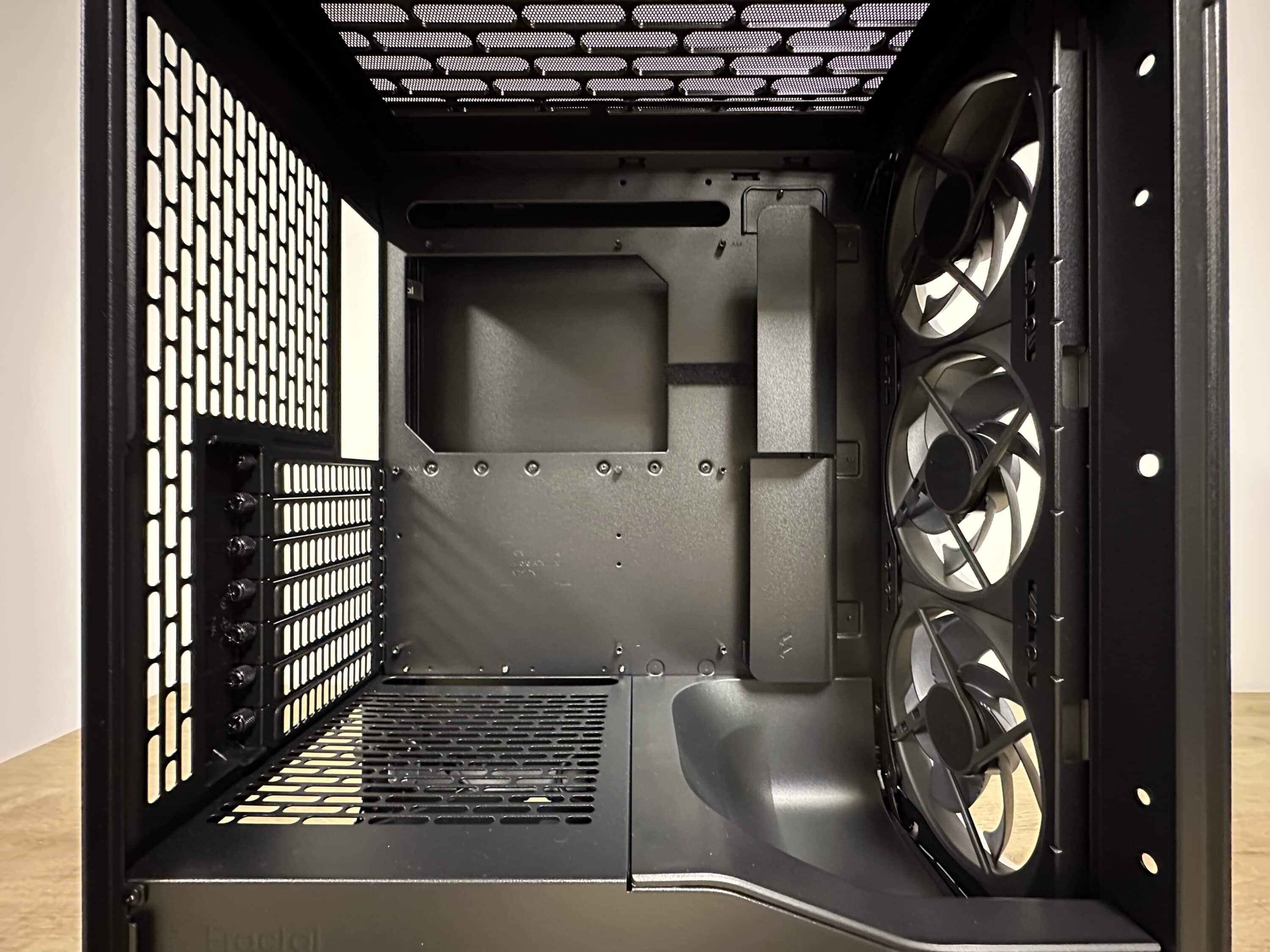

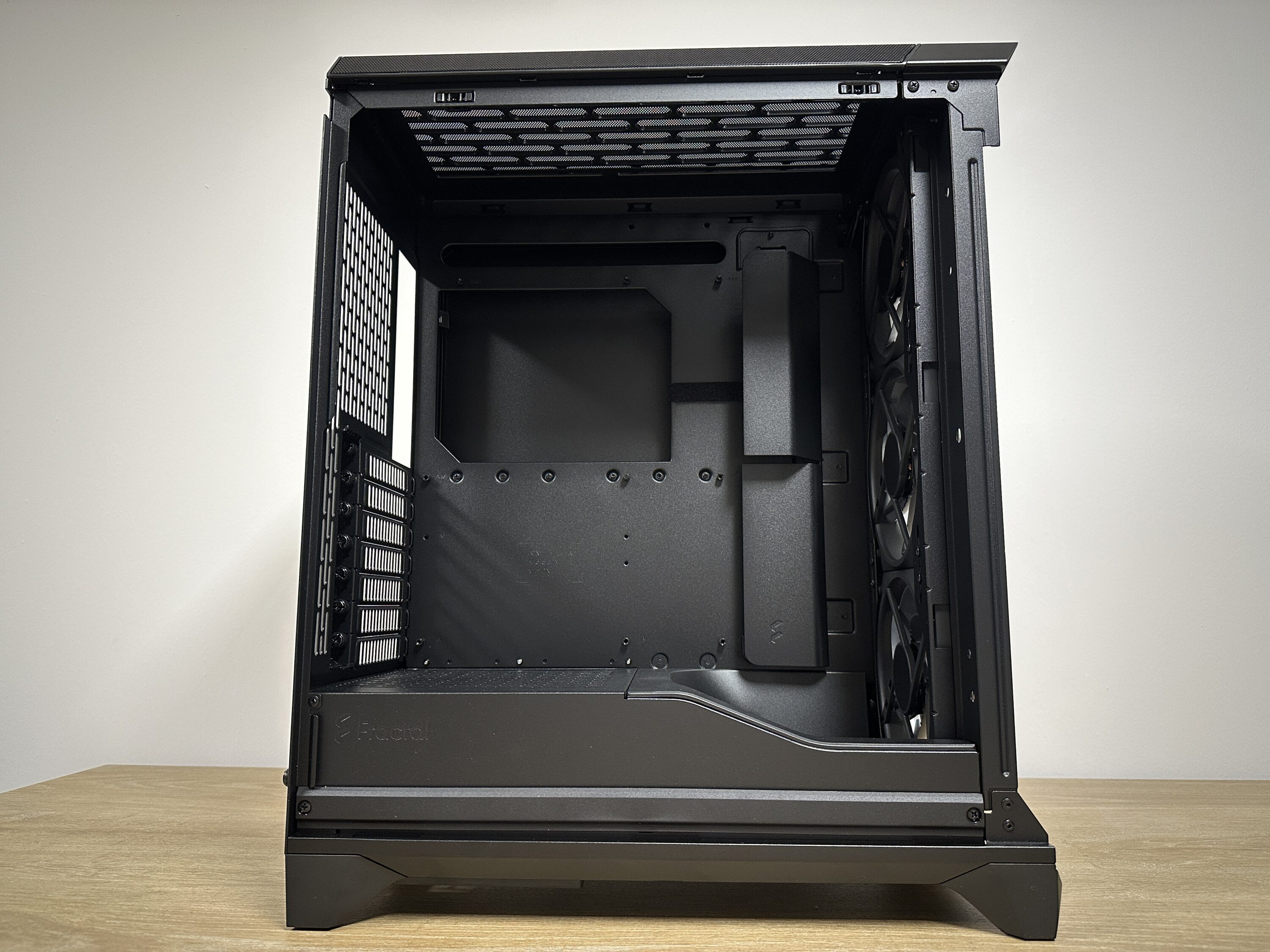

The interior of the Fractal Design Meshify 3 Ambience Pro RGB remains true to the compact exterior shape, but surprises with a well thought-out and generous room layout that can also easily accommodate powerful high-end components.

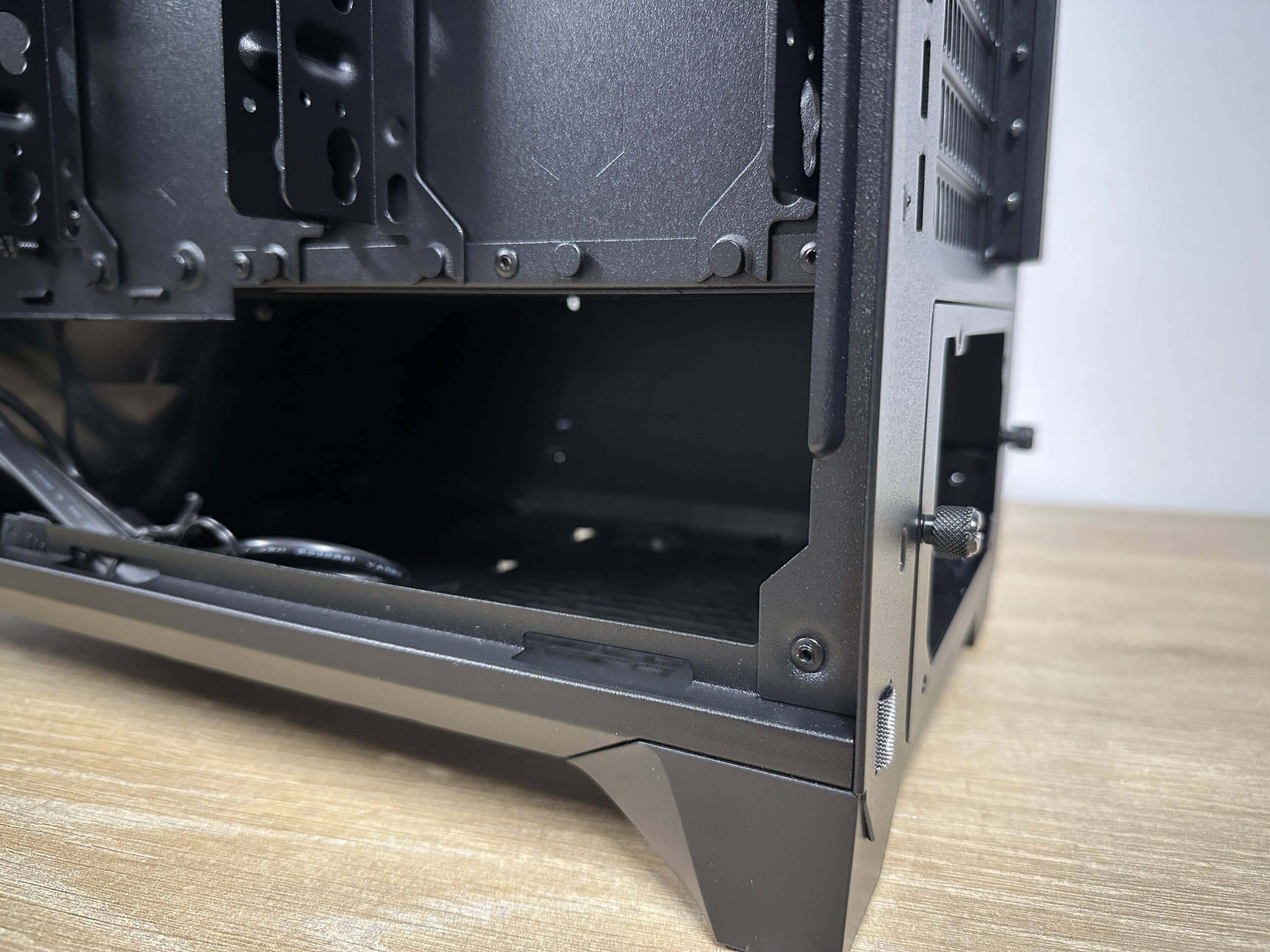

Despite the overall slim design, there is space inside for motherboards up to the E-ATX form factor (max. 277 mm wide) and graphics cards up to 349 mm long – enough even for modern top-of-the-range GPUs. The available space is optimally structured to accommodate both gaming and creator systems without causing space problems during installation.
A special highlight inside is the layout optimized for cooling: The airflow concept is based on a light trough in the lower area, which directs the airflow of the front fans upwards – directly towards the graphics card. This design principle is already familiar from other Fractal models and ensures a more efficient supply of fresh air, especially for systems with heavy GPU loads.

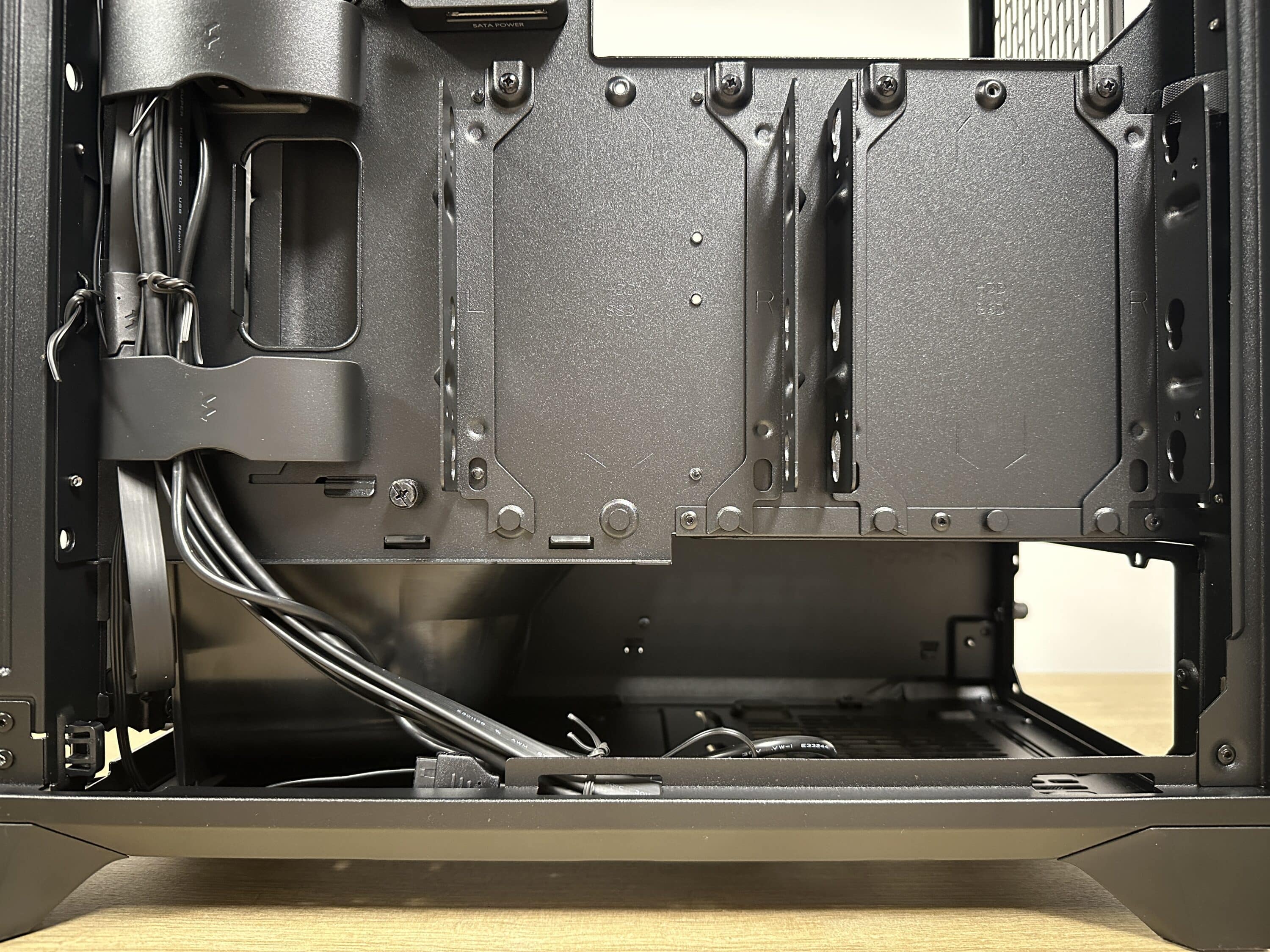

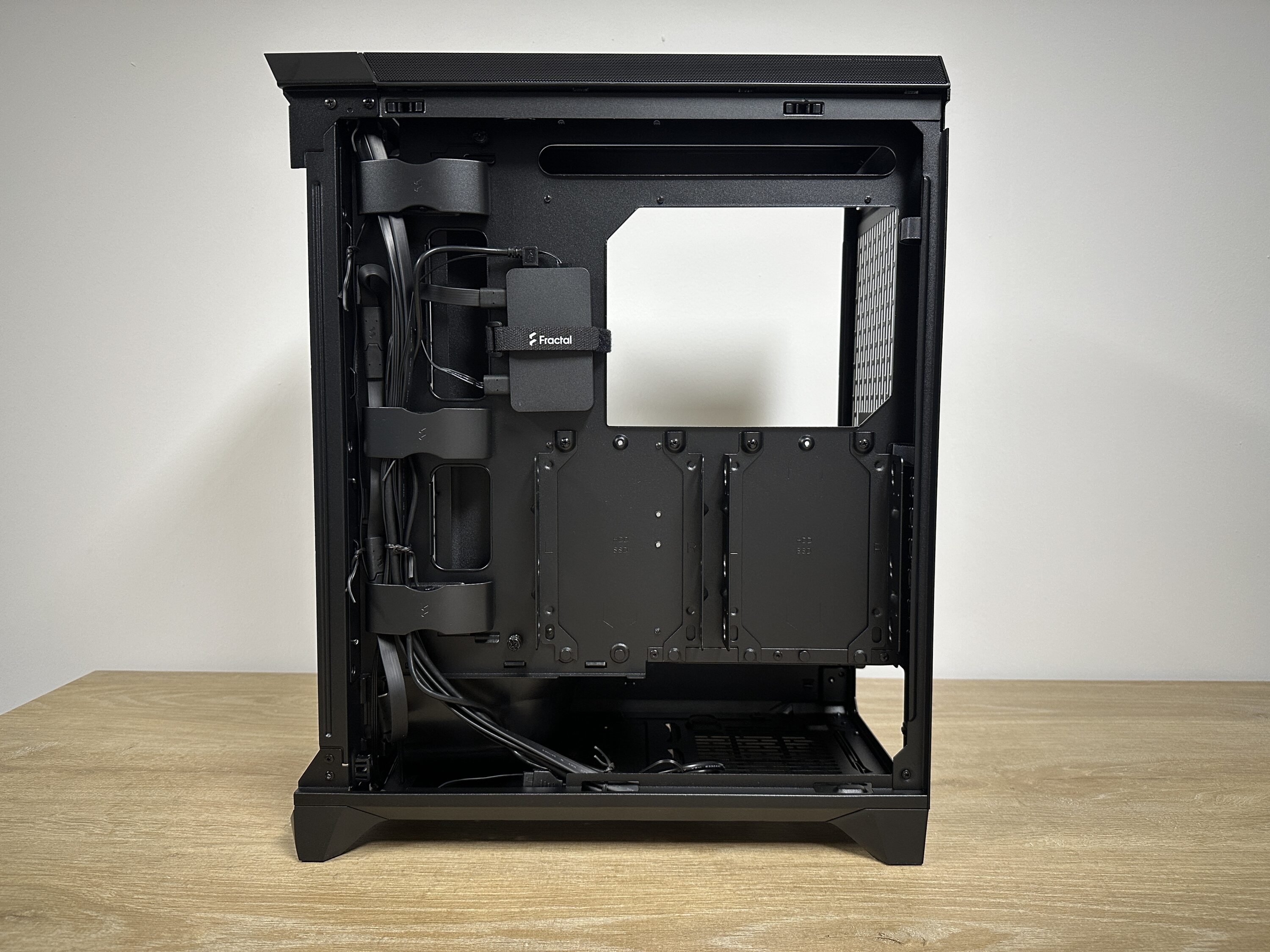

Cable management has also been well thought out: Several strategically placed cable grommets allow all connections to be neatly routed, supported by a sturdy power supply cover that also contributes to visual tidiness. At the rear, pre-formed cable ducts and Velcro fasteners ensure that the inner workings can be organized in a clear and structured manner – just like a modern, tidy PC build.
Workmanship
As you would expect from Fractal Design, the Meshify 3 Ambience Pro RGB also impresses with its excellent build quality. All components fit perfectly, there are no sharp edges and the materials are of a consistently high quality. The steel walls are sturdy, the glass side panel is neatly edged and even the tool-free mechanisms for removing the side panels leave a robust and well thought-out impression. Small details such as the precisely closing lid or the secure fit of the front panel underline the overall high-quality, durable appearance of the case.
Ambient lighting

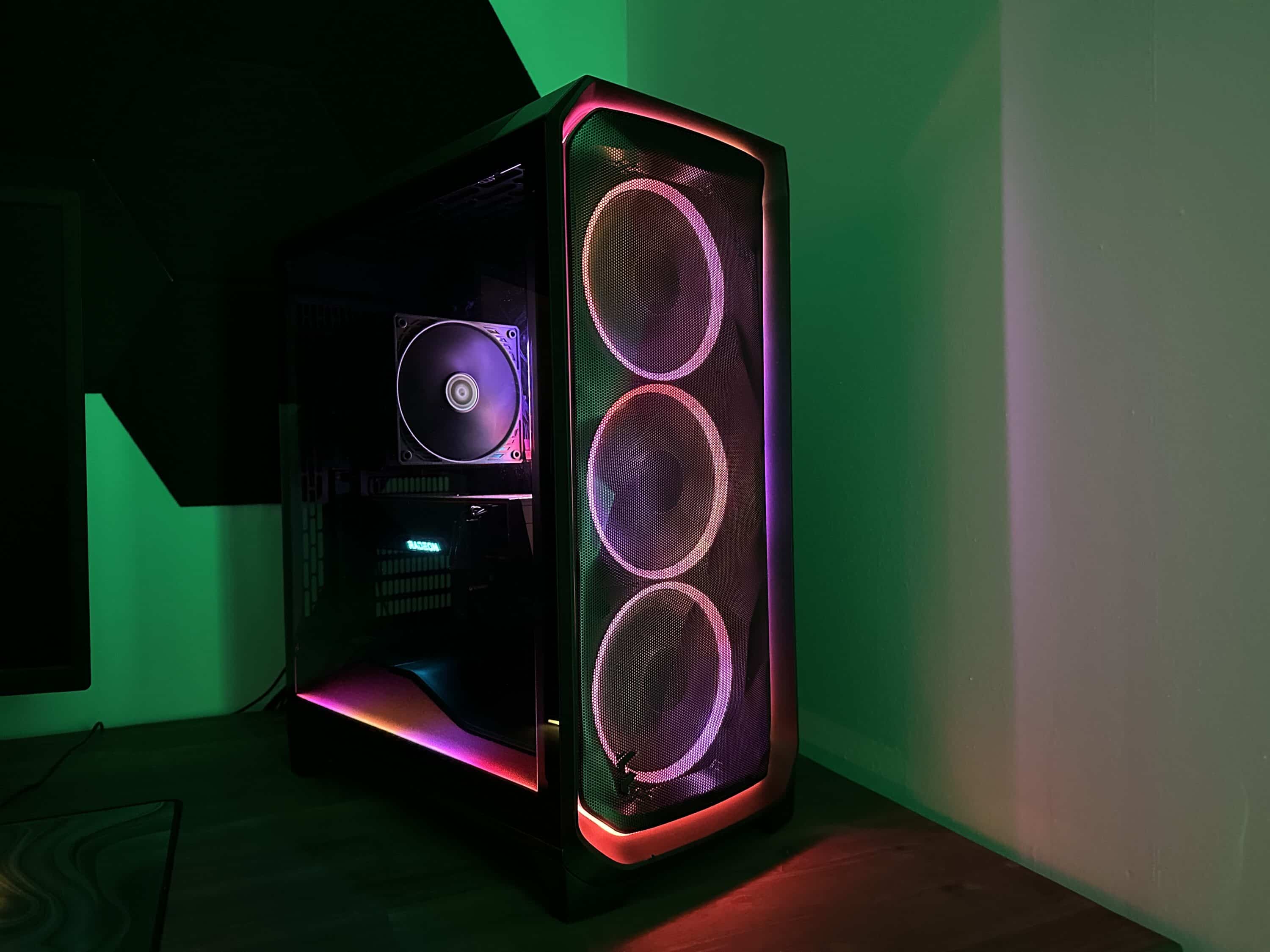

A key feature of the Pro versions of the Meshify 3 is the sophisticated lighting concept, which Fractal aptly describes as “ambient lighting”. Unlike simple RGB implementations, Fractal relies here on a harmoniously coordinated system of several light sources that are visually coordinated with each other and thus ensure a coherent overall picture.
The lighting concept comprises three central elements:
In the interior, an ARGB LED strip, which is discreetly attached to the lower edge of the glass side panel, provides soft illumination of the hardware. This light source effectively highlights the components without being obtrusive – especially in combination with the slightly tinted side panel.

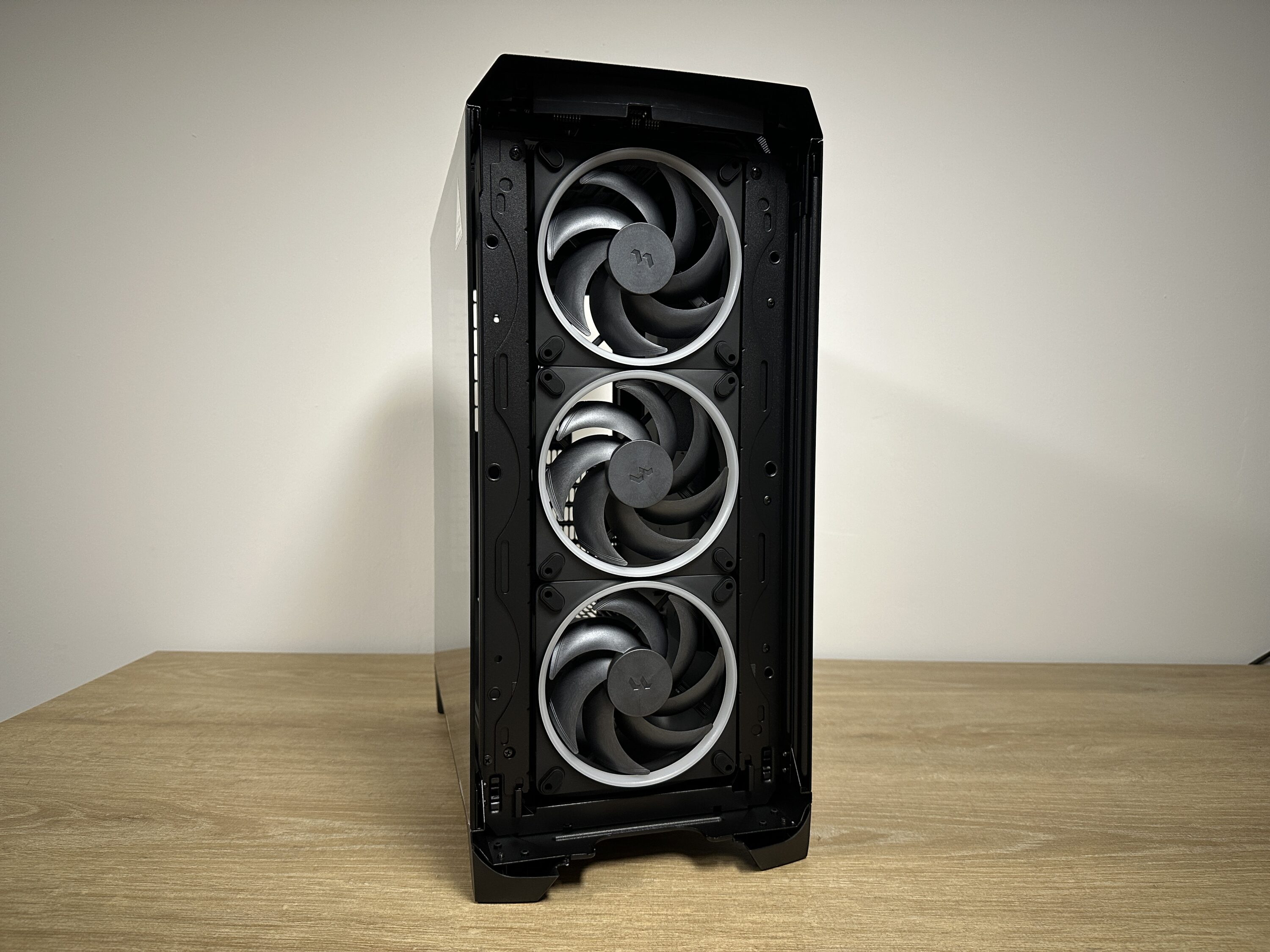

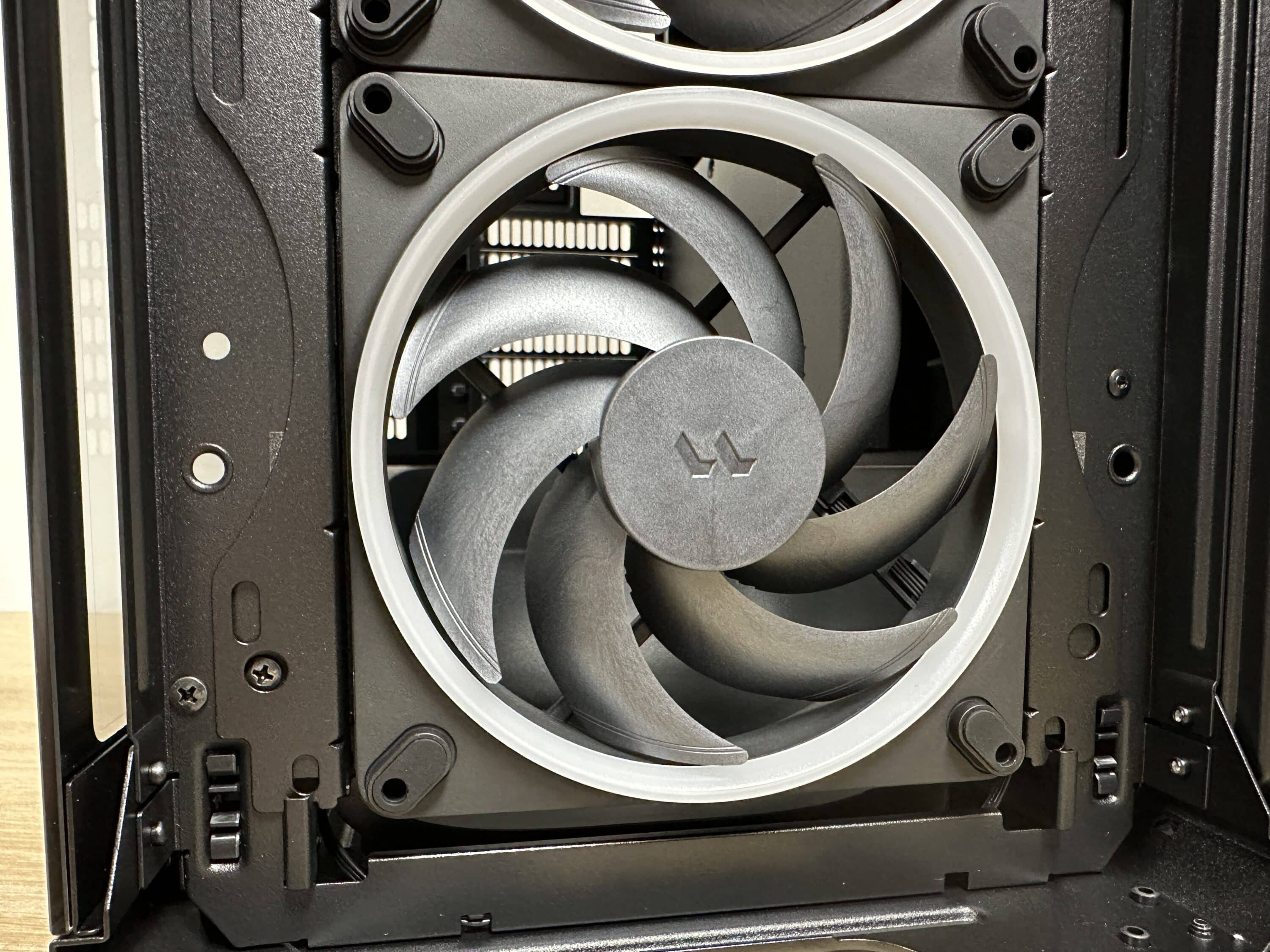

However, the main focus is on the front, where the pre-assembled Momentum 14 RGB fans rotate, whose ARGB-illuminated fan rings are not only visually impressive, but can also be synchronized and controlled via the integrated Adjust Pro Hub.
A subtle but effective special feature rounds off the lighting concept: the edge of the mesh front panel is also equipped with a subtle lighting effect. The elongated edges create an indirect glow that provides pleasant, atmospheric illumination of the entire housing, especially in the dark.
Fan & lighting control

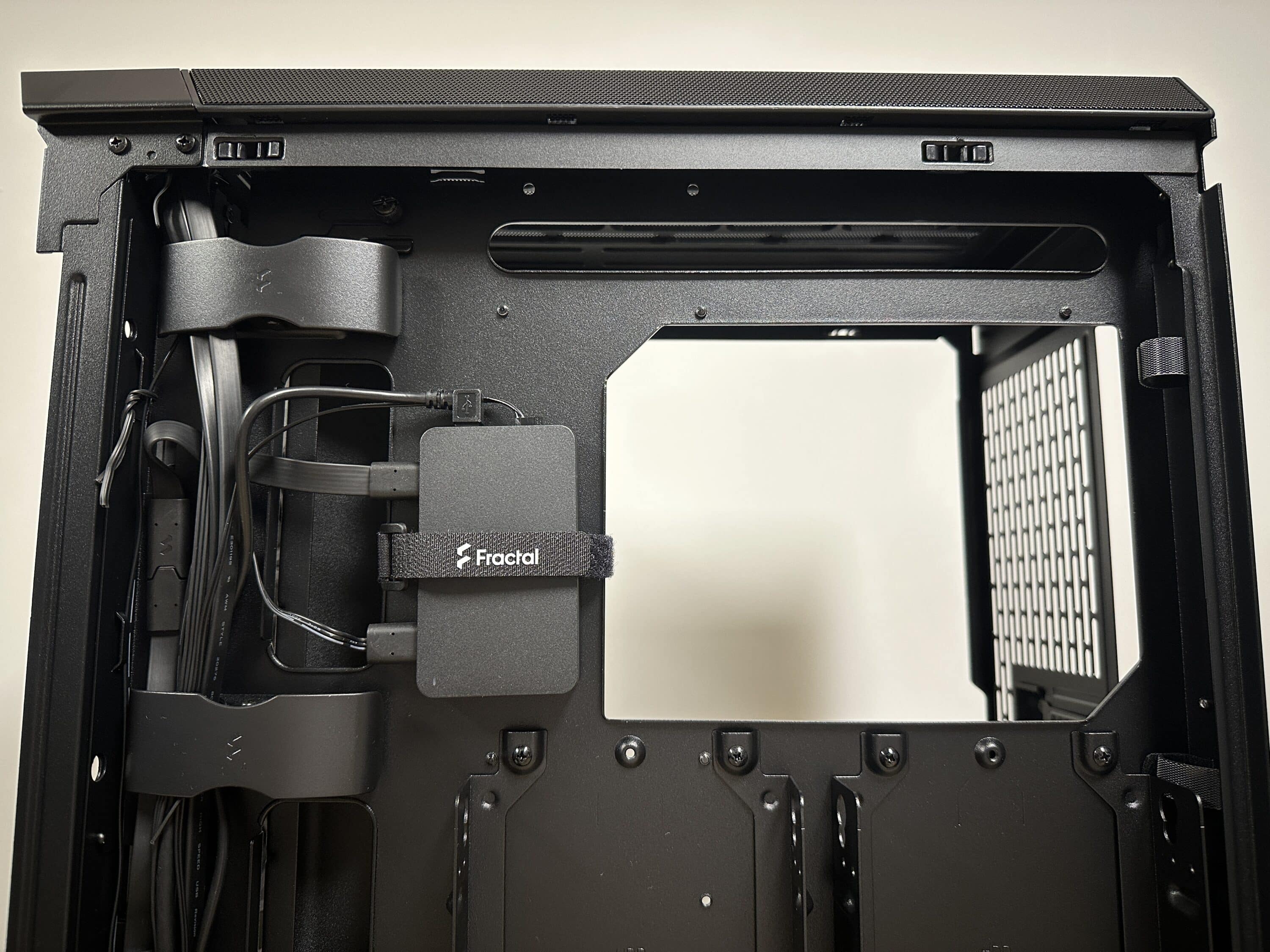

To control the integrated RGB lighting and fans, Fractal relies on its own Adjust Pro Hub for the Meshify 3 Ambience Pro RGB – a central control unit that is both functional and user-friendly. The hub offers sufficient connection options for all pre-installed components and is largely pre-wired, which considerably simplifies commissioning.

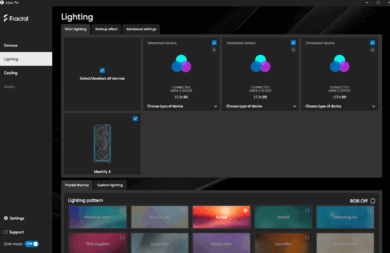

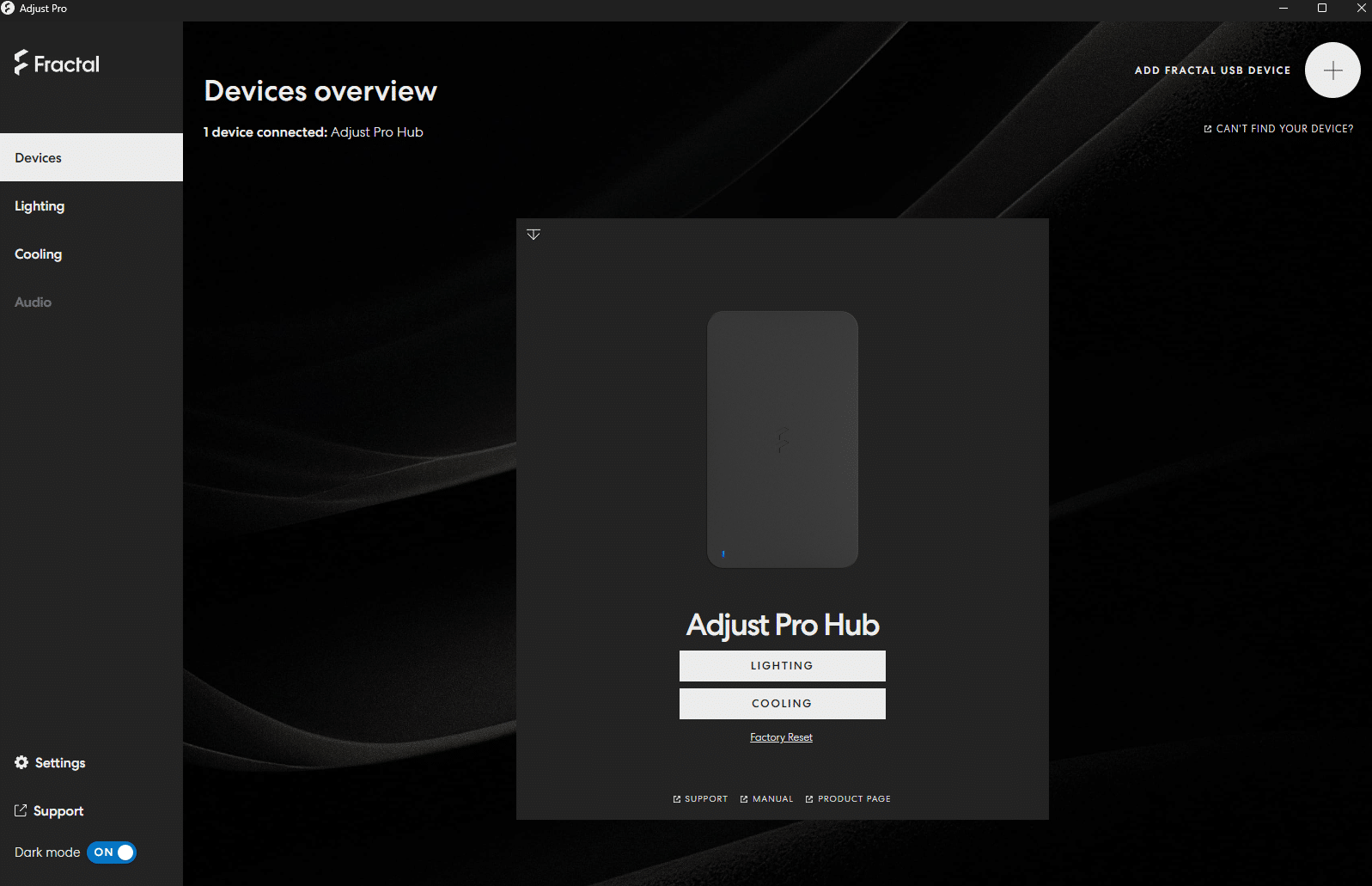

The connection is made directly to the mainboard via a USB port, which enables simple integration into the system. Fractal provides two options for control: the classic Adjust Pro software, which can be installed locally, and a web-based online tool, which can be used directly in the browser without installation.

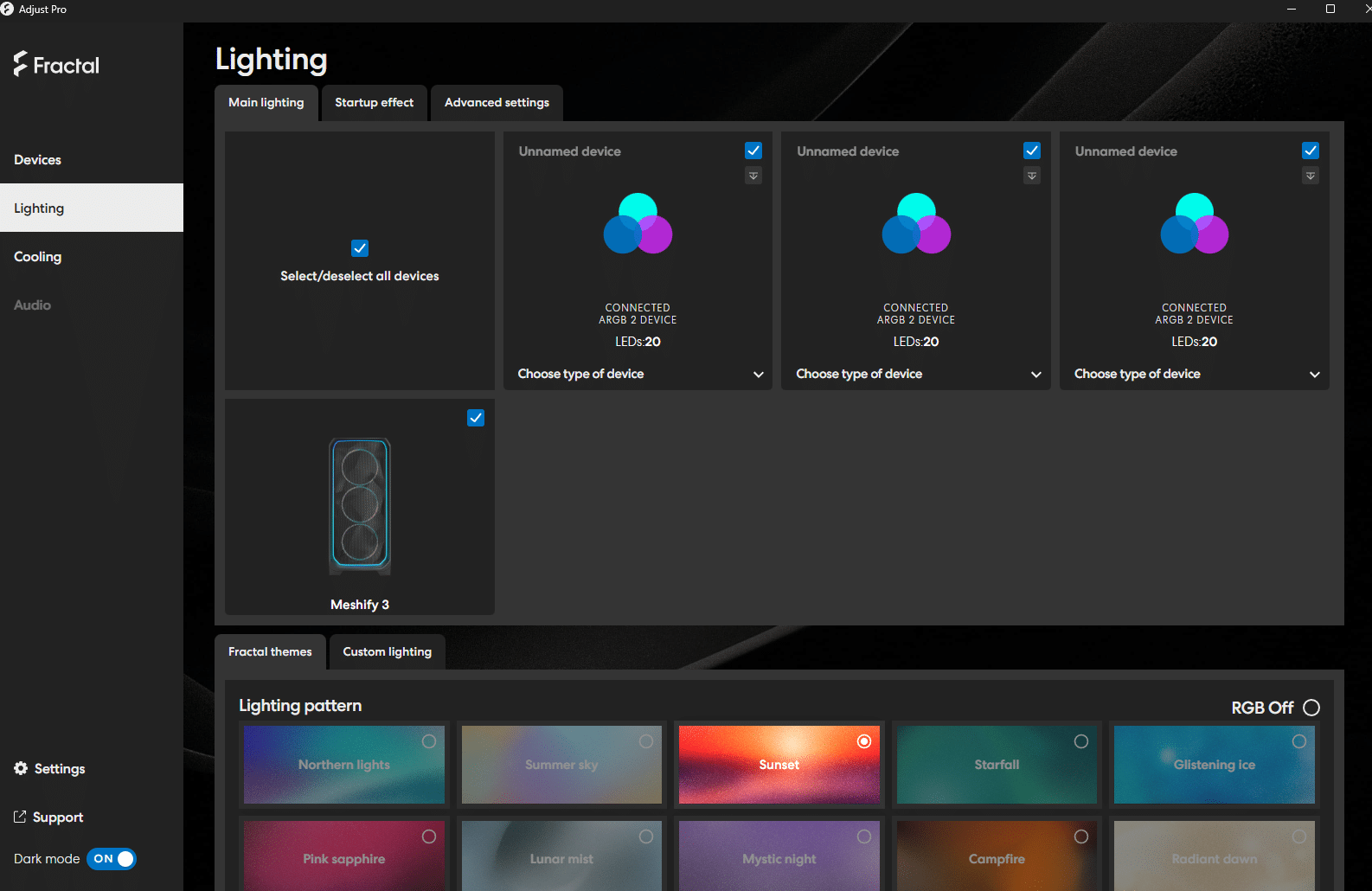

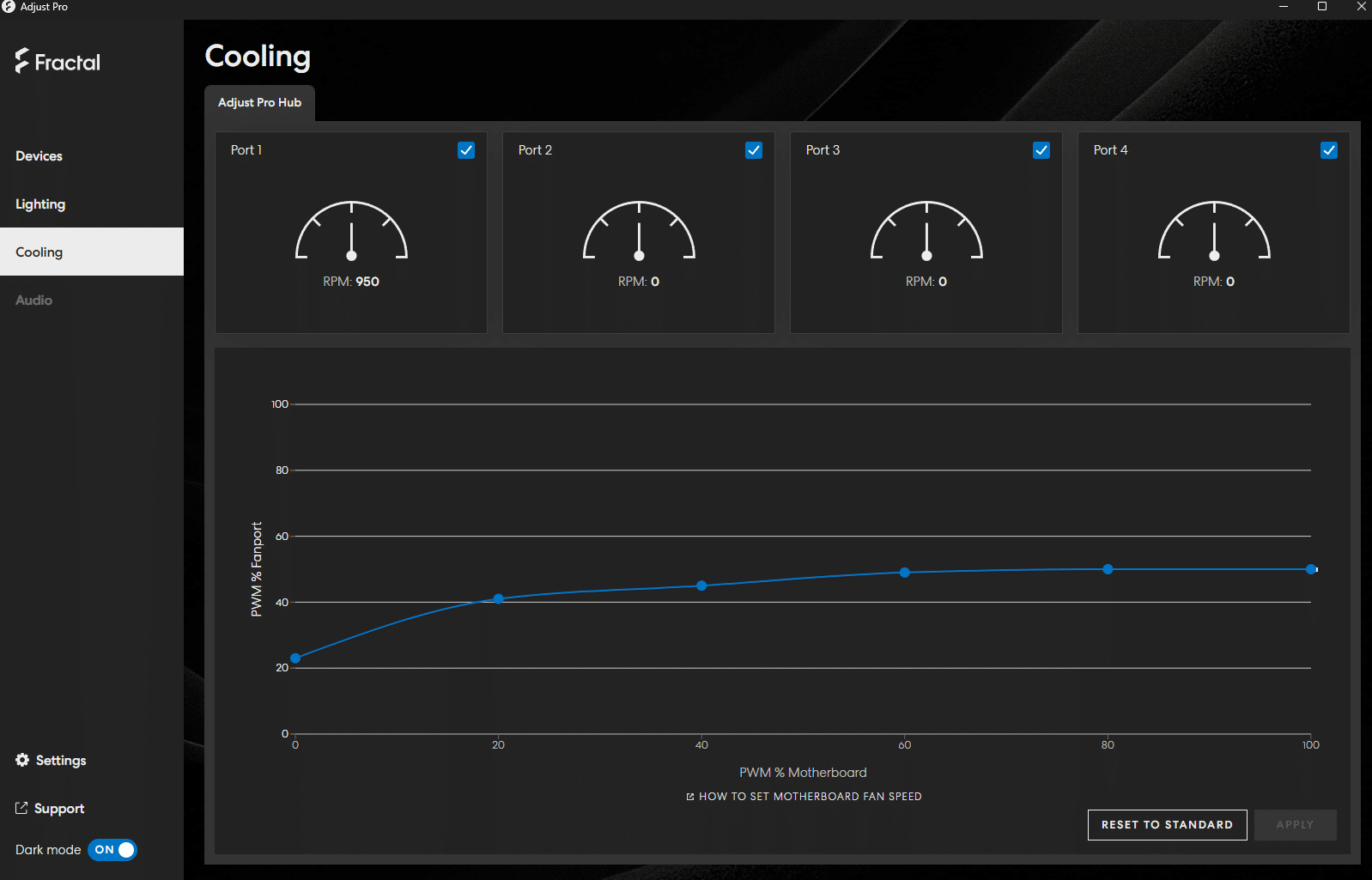

Both versions worked smoothly in the test. The user interfaces are clearly structured so that both lighting effects and fan curves can be adjusted quickly and intuitively. Nevertheless, a favorite has emerged in practice: The Adjust Pro desktop software scores points with fast recognition of the hub, a stable connection and a wider range of functions. Not only can predefined lighting effects be selected here, but individual color gradients and temperature-dependent fan profiles can also be defined.
Installation of the test system
The test system:
| Processor: | Ryzen 7 7800X3D* |
| Mainboard: | MSI B650 Tomahawk* |
| Memory: | Corsair Vengeance RGB 32GB 6000 MHz* |
| Graphics card: | AMD Radeon RX 6900XT |
| Power supply: | Corsair HX850 |
| Case: |
Meshify 3 Ambience Pro* |
| AiO cooler: | Artic Freezer 36 Black* |
The assembly of our test system in the Fractal Design Meshify 3 Ambience Pro RGB went absolutely smoothly. Fractal provides clear, illustrated assembly instructions that not only clearly describe the basic steps, but also go into special features such as the installation of radiators, cabling with the Adjust Pro Hub or the use of the modular drive mounts. Almost superfluous for experienced users – but a valuable aid for beginners.
All components found their place without any problems. The test system consisted of an ATX mainboard, an RX 6900 graphics card and an ARCTIC Freezer 36 air cooler, which is rather compact with a height of 159 mm, but still shows how much room there is for CPU coolers. With a maximum clearance of 173 mm, there is also enough space for larger tower coolers.
The power supply unit was also easy to install from the rear – and even easy to prepare thanks to the mounting frame. Cabling was quick and easy thanks to the generous cable ducts and mounting options at the rear. Even when the system was fully equipped with several SSDs, an RGB controller and fan cabling, the interior remained tidy and free of annoying cable clutter.
The easily accessible mounting frame in the lid area was a particularly positive feature: If you want to retrofit a radiator or additional fans later, you can benefit from a tool-free solution that saves time and effort in everyday use.
Performance test
In order to achieve the most practical results possible, we carried out the performance test with moderately set fan speeds – just as many users would operate their system in everyday life. The aim was to create a realistic, everyday temperature scenario without artificially forcing maximum cooling performance.
In normal operation – such as web-based work, streaming or office use – the temperatures show their relaxed side. The CPU settled at an average of 50.2 °C, while the graphics card also remained pleasantly cool at 51.0 °C. These values clearly indicate a good basic airflow in the casing.
The Meshify 3 Ambience Pro RGB also shows its superior side under load: In the Furmark stress test, in which the GPU was continuously heavily loaded, the temperature rose to 78 °C – an absolutely uncritical value that shows that the case provides sufficient air supply even under full load and that the waste heat is reliably dissipated.
Thanks to the open mesh front, the three pre-installed 140 mm RGB fans and the airflow-optimized interior, the Meshify 3 can efficiently supply the installed hardware at all times – without excessive speeds or disturbing background noise.
Conclusion
With the Meshify 3 Ambience Pro RGB, Fractal Design delivers a well thought-out and high-quality case that consistently builds on the strengths of the Meshify series – and at the same time offers modern features such as ARGB lighting, optimized airflow and flexible control via software or browser tool.
Despite its compact format, the case offers enough space for the latest high-end hardware, including large graphics cards and powerful CPU coolers. The clever room layout, tool-free access and convenient cable management make installation uncomplicated and pleasant – for beginners and experienced PC builders alike.
Particularly noteworthy is the harmonious lighting concept, which offers a successful balance of appearance and function thanks to subtle accents and the RGB-illuminated fans. The cooling performance is also impressive: in the test, the CPU and GPU maintained a consistently uncritical temperature level – even under load.
Although the space in the upper area for radiators is limited, this is due to the character of the compact design and should only be relevant for users with very specific cooling requirements.
VORTEILE
- Excellent workmanship and tool-free access
- Harmonious RGB ambience with clever lighting combination
- Efficient airflow despite compact design
NACHTEILE
- Limited radiator support in the lid (max. 280 mm)
- Compact layout slightly restricts modular expansion
Fazit
The Meshify 3 Ambience Pro RGB impresses as a compact housing with a strong design, sophisticated lighting and solid suitability for everyday use
