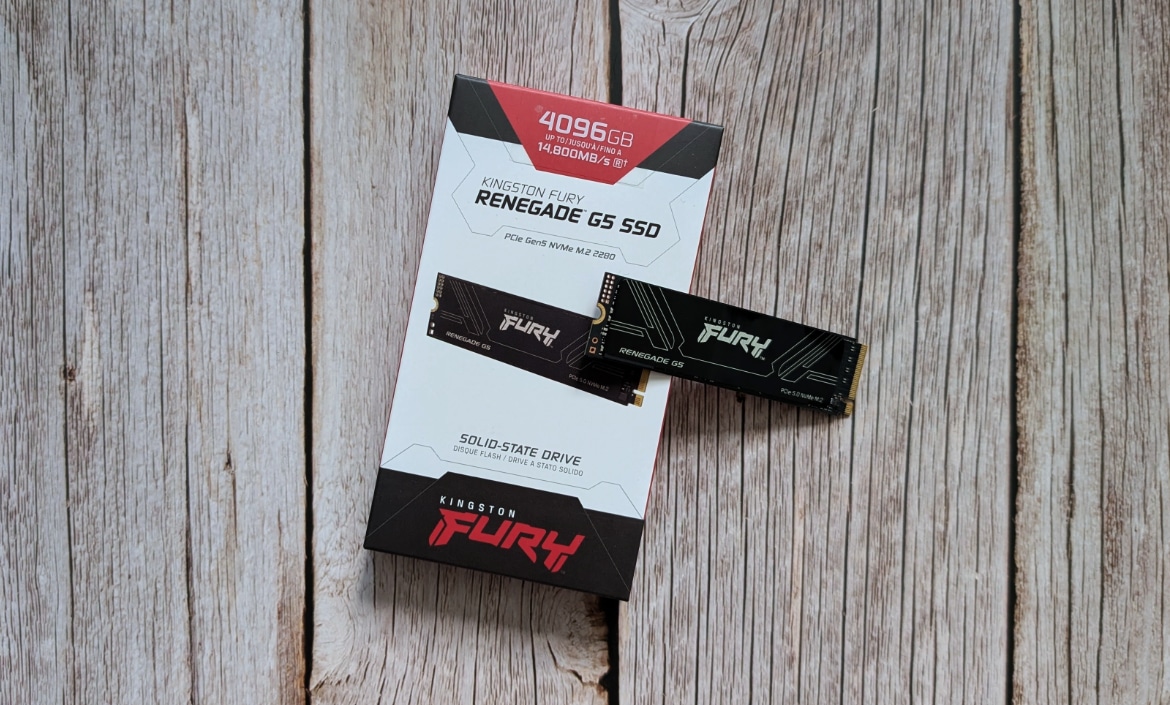

Kingston FURY Renegade G5 review - Kingston's first PCIe 5.0 SSD

Having already tested several high-end PCIe 5.0 SSDs with Phison’s PS5026-E26 controller, this is the first SSD with a different controller. The Kingston FURY Renegade G5 is Kingston’s first PCIe 5.0 SSD. The SSD relies on Silicon Motion’s SM2508 controller and offers transfer rates of up to 14,800 MB/s for reading and 14,000 MB/s for writing. This makes it one of the fastest SSDs currently available. The SSD is available with a capacity of up to 4 TB, with an 8 TB model to follow. In the following test, we take a closer look at the 4 TB model of the Kingston FURY Renegade G5.

Kingston Fury Renegade G5 PCIe 5.0 NVMe M.2 SSD 4T-SFYR2S/4T0

€ 408.00

Auf Lager

Buy now* Amazon

Technical data of the Kingston FURY Renegade G5

Storage capacity	4 TB
Interface	PCIe Gen5x4
Form factor	M.2 2280
Flash type	3D NAND TLC (Kioxia BiCS8, 218 layers, 1 Tbit)
Cache	4 GB DRAM (Micron LPDDR4)
Controller	Silicon Motion SM2508
Max. Read/write speed (MB/s)	14.800/14.000
Operating temperature	0 °C – 70 °C
Power consumption	average 7.1 W, max. 9.5 W
Dimensions	80.0 x 22.0 x 2.3 mm
Weight	7,7 g
MTBF	2 million hours
TBW	4,000 TB
Warranty	5 years or until TBW is reached
Price	€ 408.00 *

The Kingston FURY Renegade G5 (link to manufacturer) is based on PCIe 5.0. The transfer rates are up to 14,800 MB/s read and 14,000 MB/s write for the 4 TB model, the transfer rates of the other models vary. Kingston relies on Silicon Motion’s SM2508 controller, 1 GB DRAM cache per TB of flash memory and Kioxia BiCS8 flash memory. The SM2508 controller is very energy efficient. The power consumption is lower due to the smaller manufacturing process (6 nm) compared to Phison’s PS5026-E26 controller (12 nm). The SSD is not equipped with a heat sink, but Kingston recommends using the mainboard heat sink under continuous load.

The warranty period of the Kingston FURY Renegade G5 is 5 years or until the TBW value of 4,000 TB is reached for the 4 TB model, if this is reached earlier.

Scope of delivery

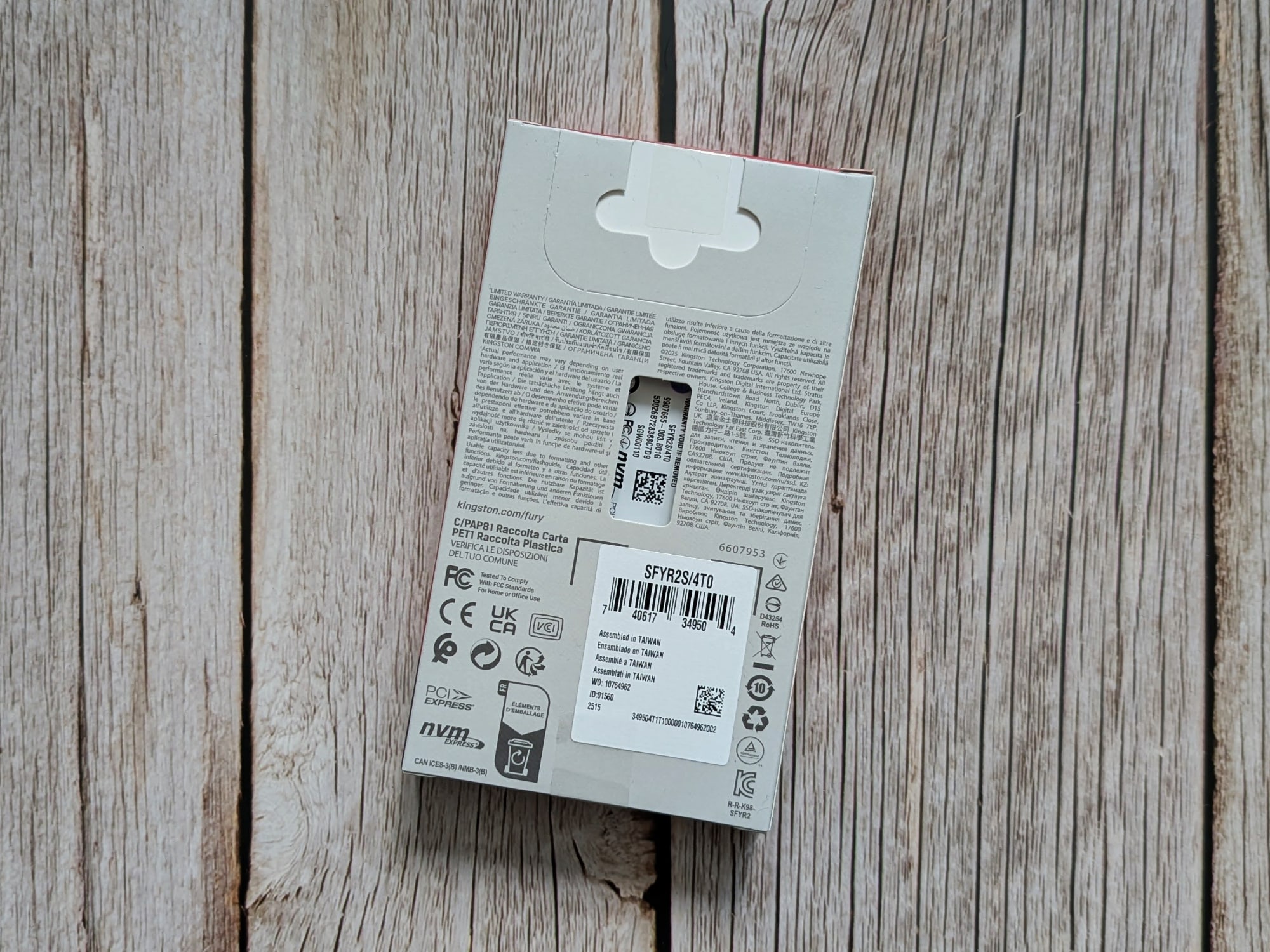

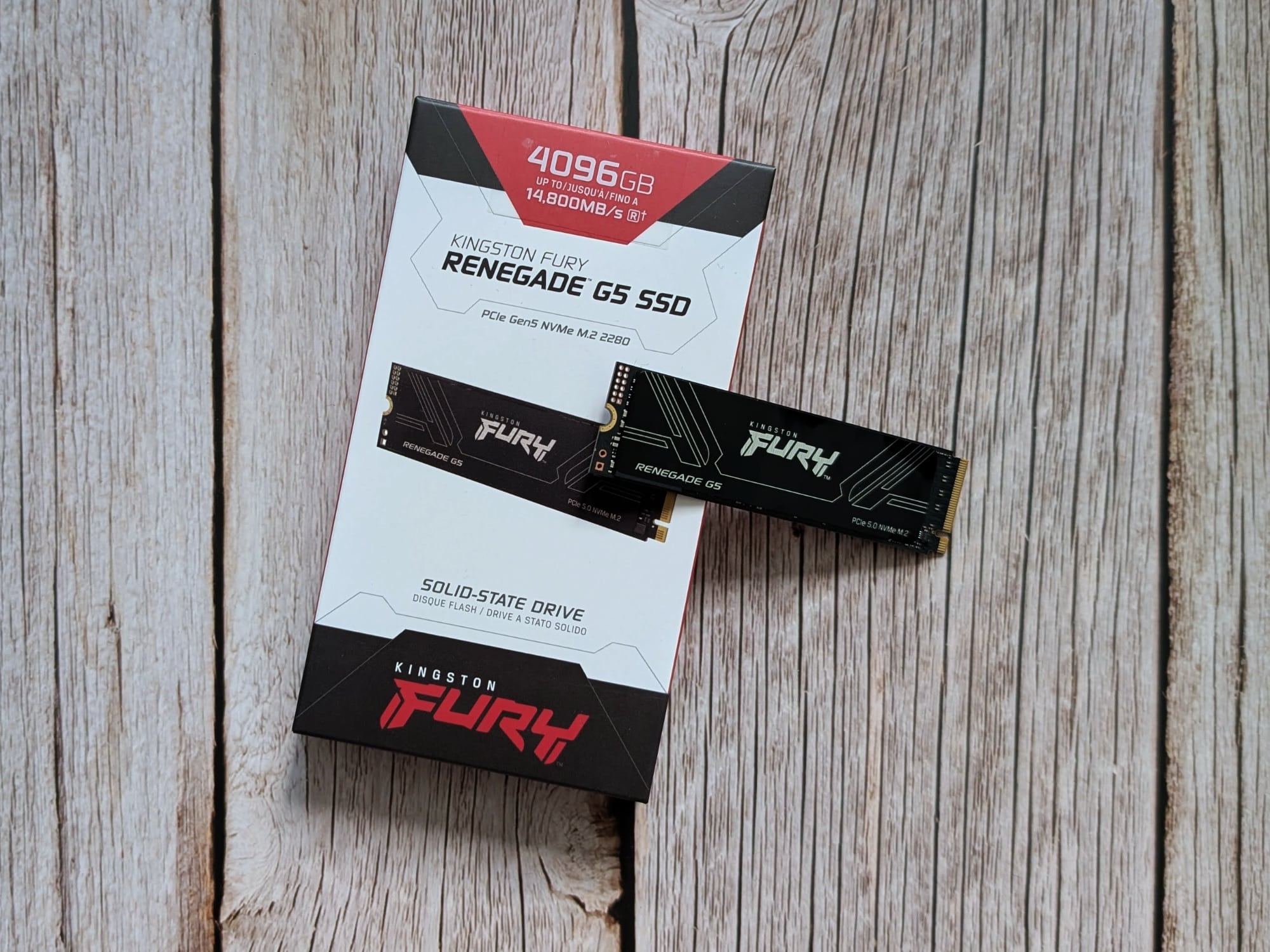

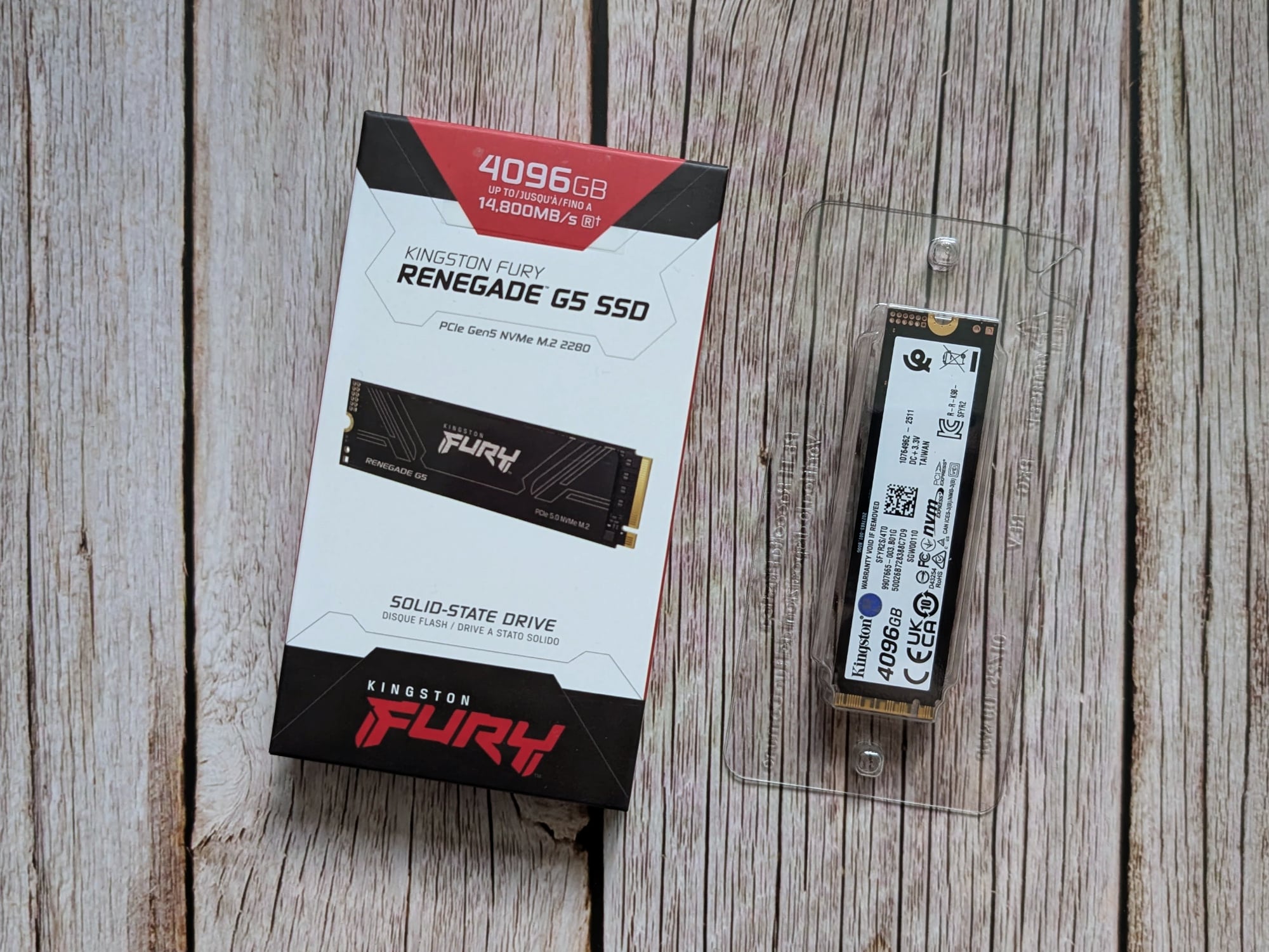

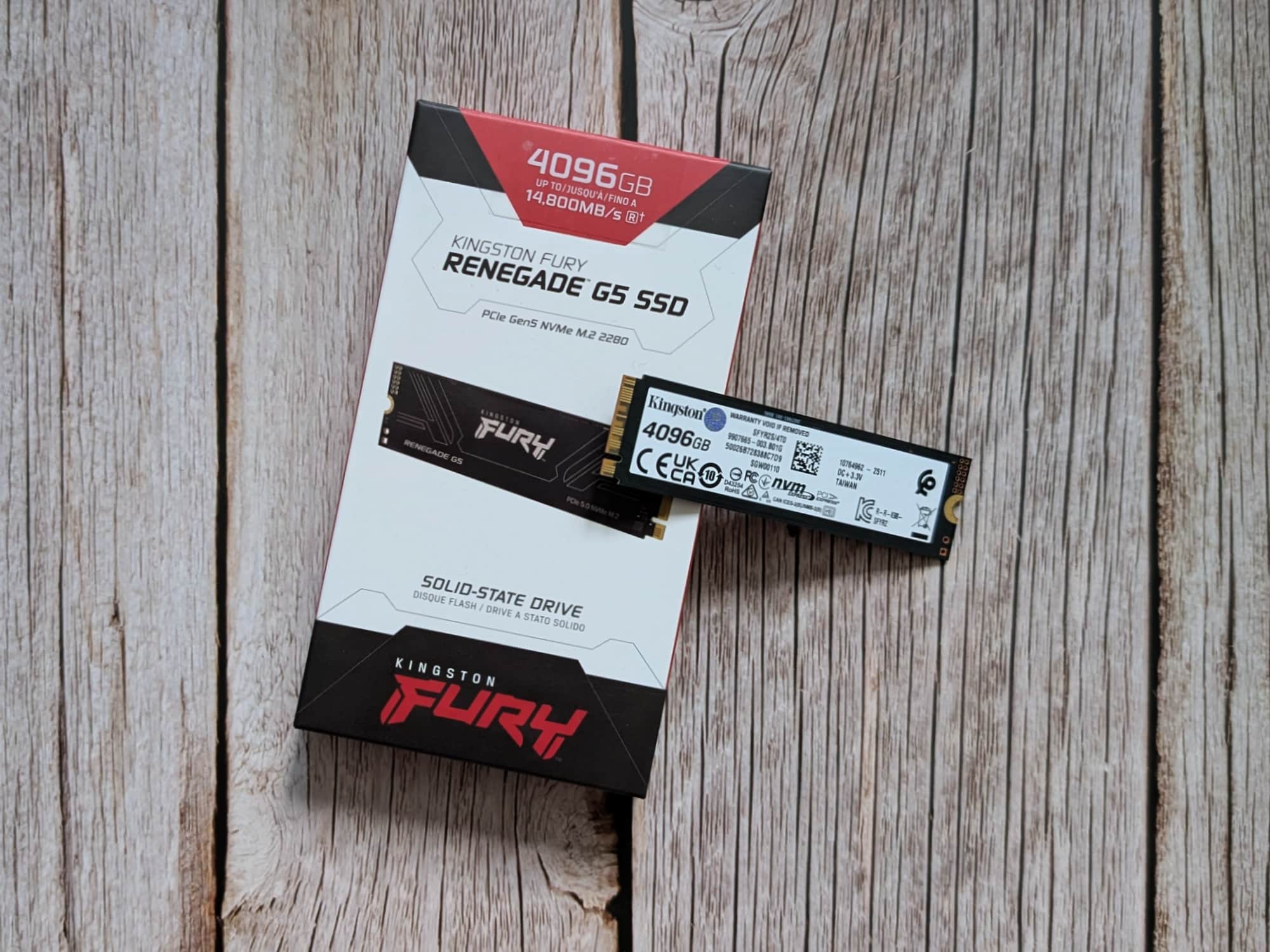

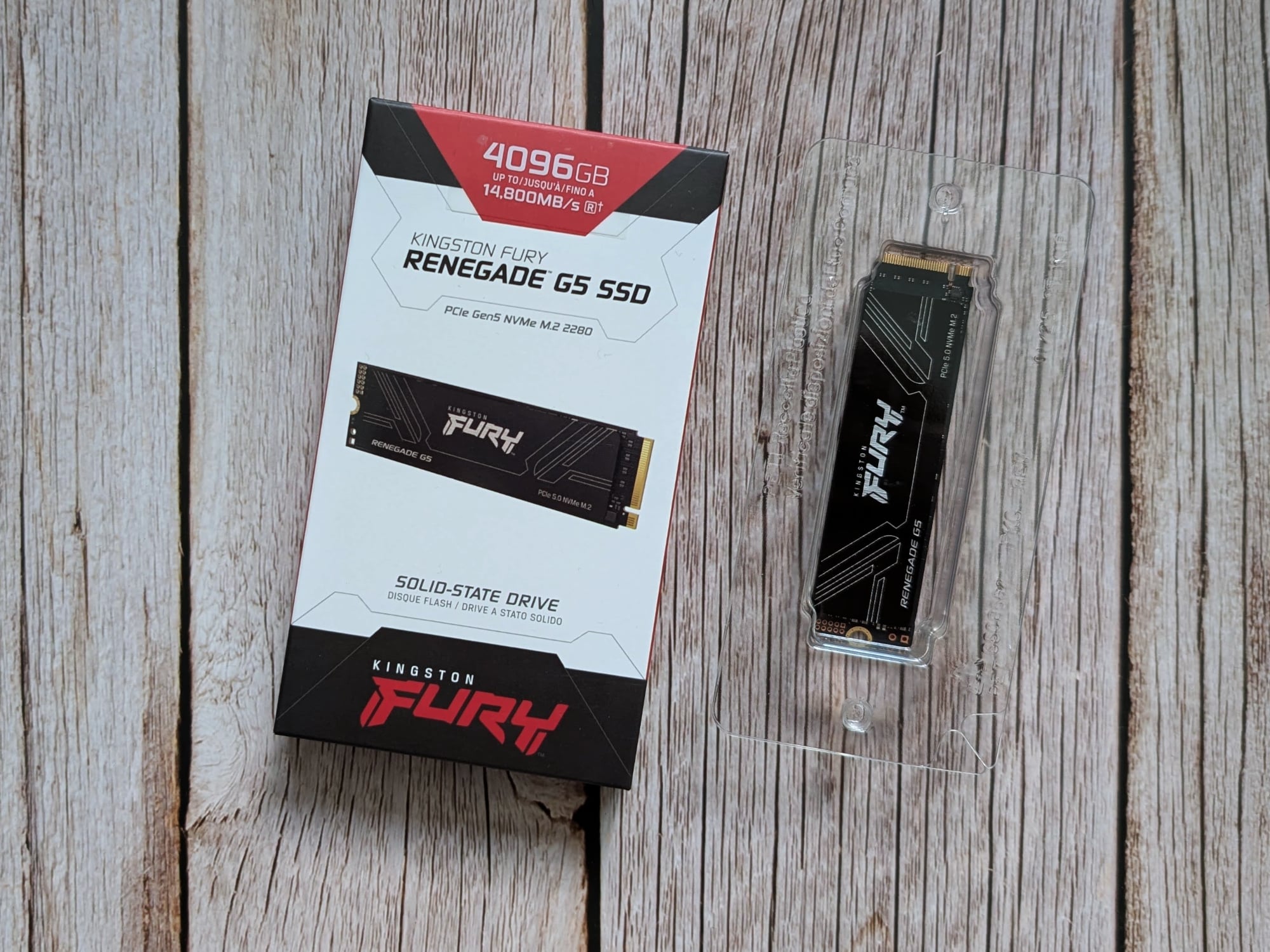

The Kingston FURY Renegade G5 comes in a compact, white box with black and red accents. On the front is a picture of the SSD as well as information on capacity, interface and maximum transfer rates. Further information such as the model number can be found on the back. The SSD itself is also visible with the model number through a cut-out on the back of the box.

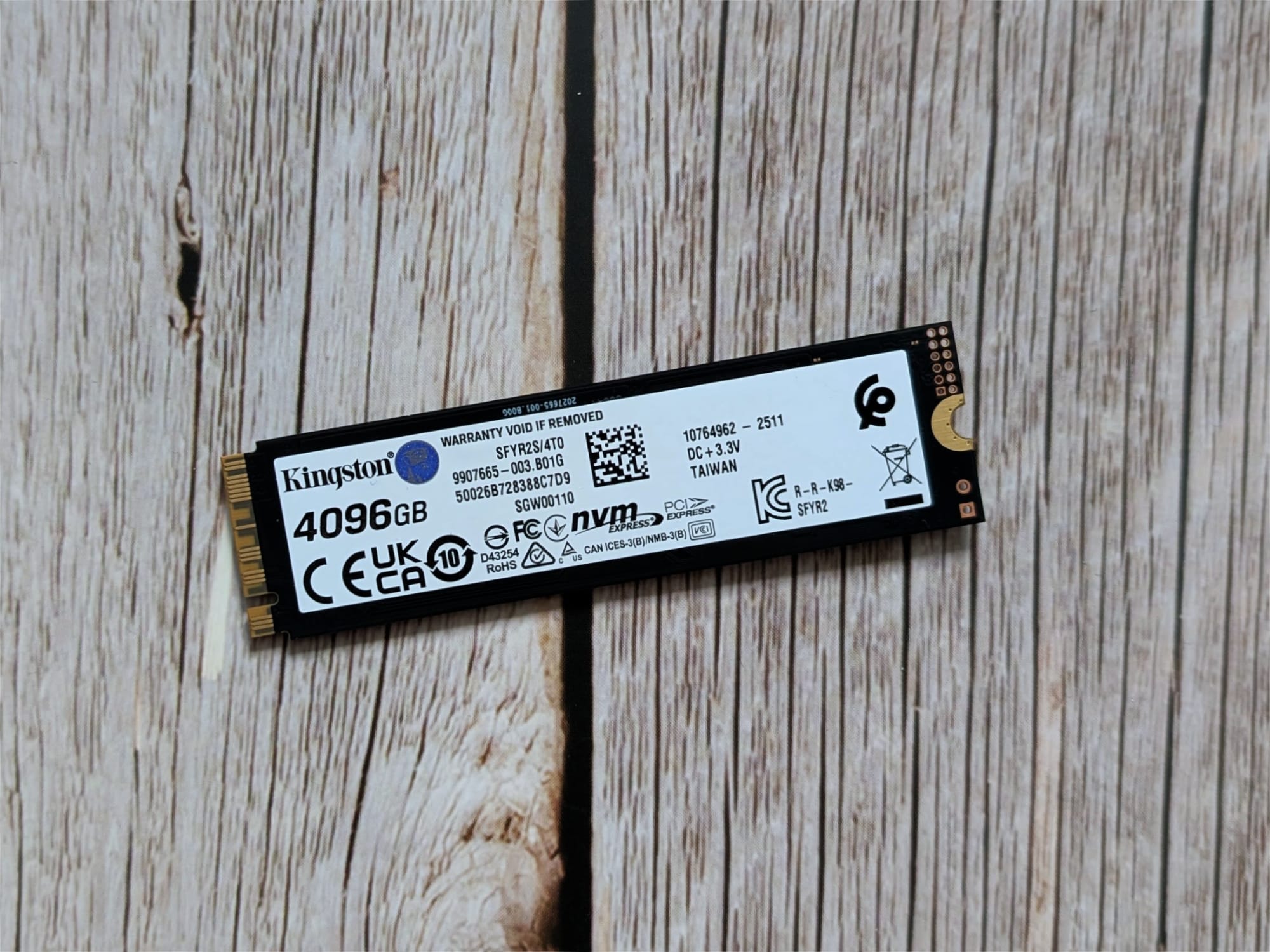

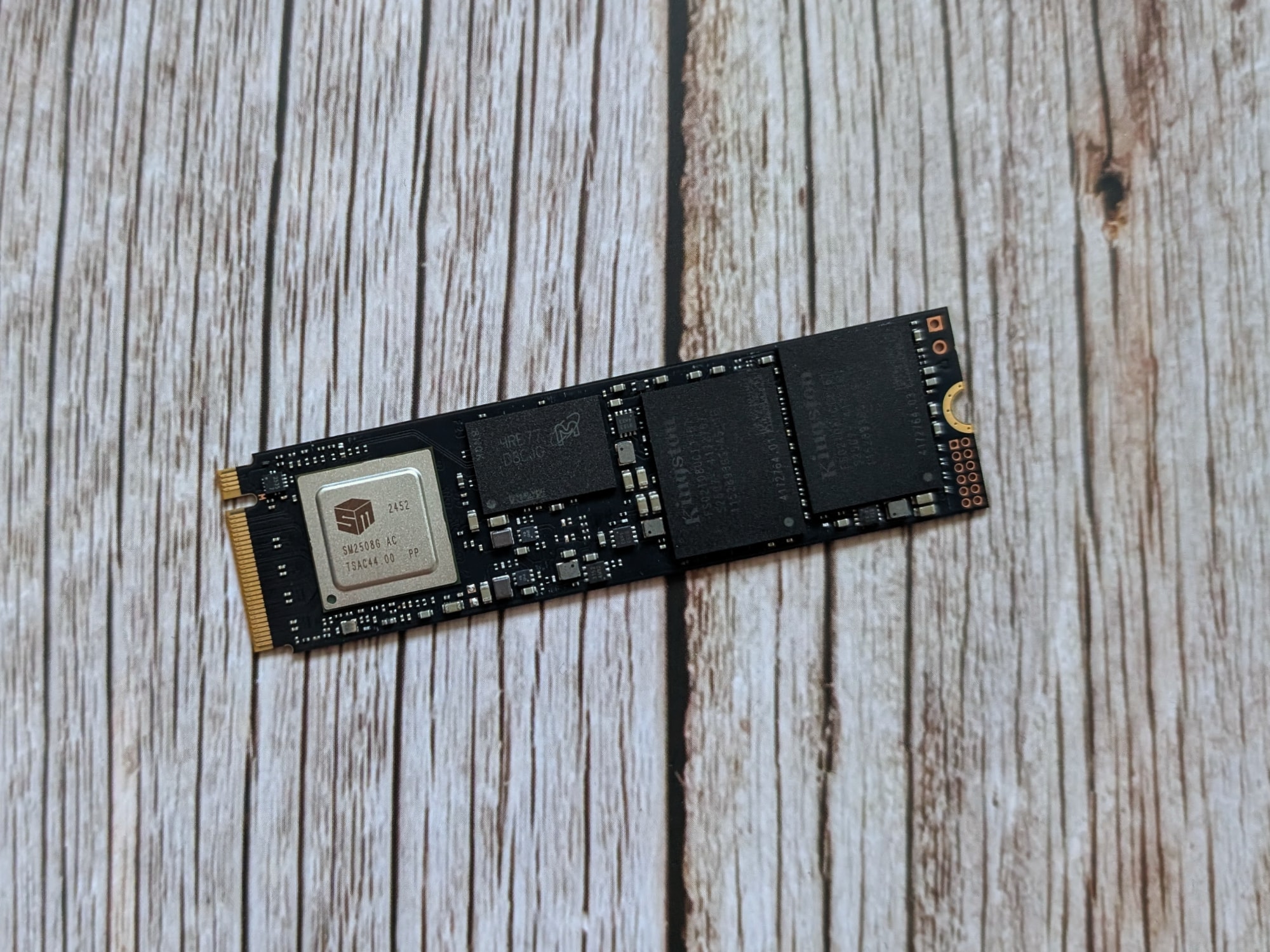

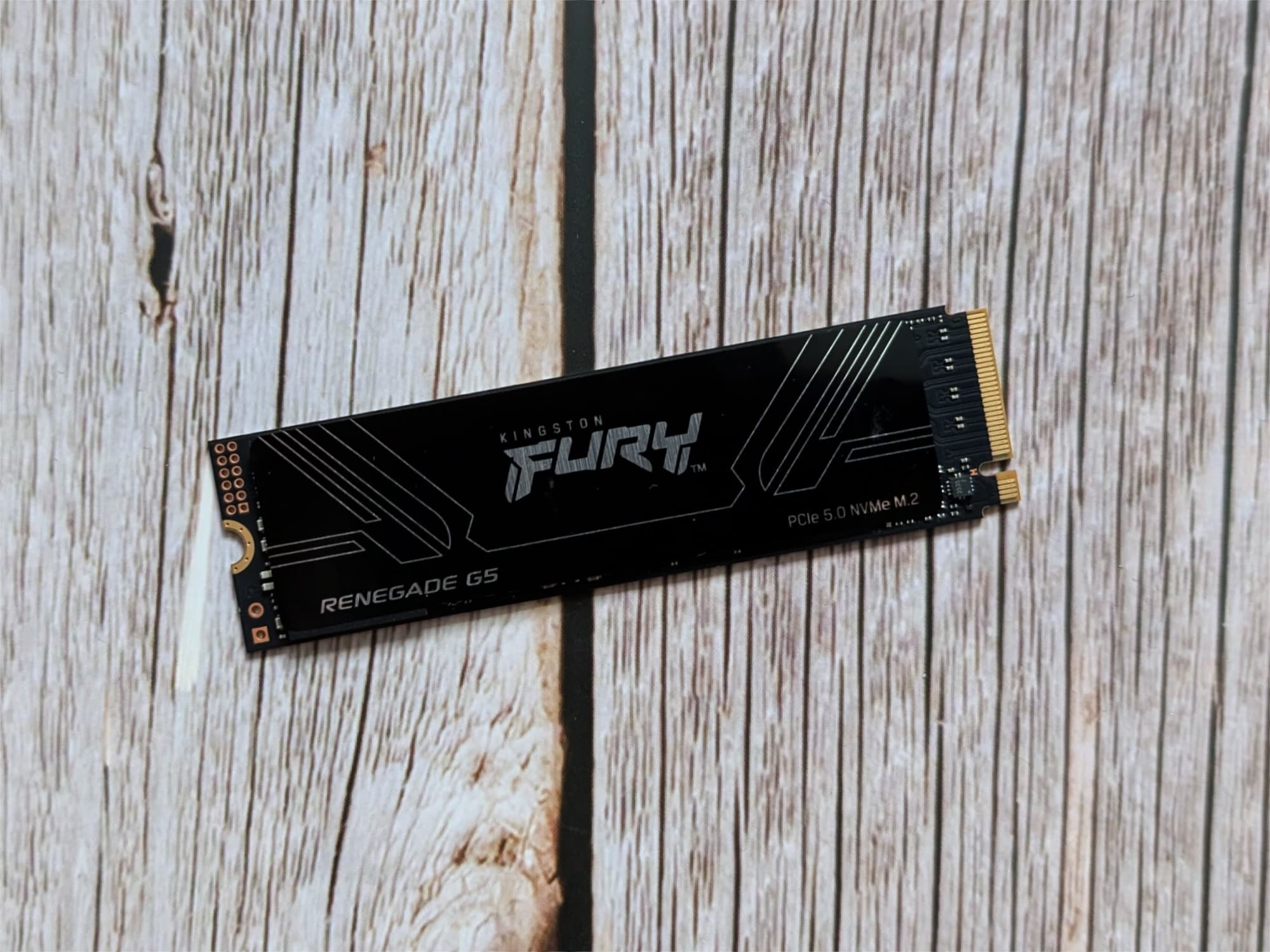

The circuit board of the SSD is black and fitted with chips on one side. The unpopulated back is covered by a white sticker with the Kingston logo, model number, capacity and other information.

Test system

Performance test of the Kingston FURY Renegade G5

To determine the performance of the Kingston FURY Renegade G5 in the test, we use the benchmarks of the tools AS SSD, CrystalDiskMark, ATTO Disk and HD Tune Pro as usual.

Results of the performance test

The Kingston FURY Renegade G5 achieves a very good 10,674.80 MB/s read and 11,595.52 MB/s write in the AS SSD Benchmark Seq test. In the 4K test, the SSD achieves a very good 121.57 MB/s when reading and 272.07 MB/s when writing. This makes it the fastest SSD we have tested so far in the Seq test and in the 4K read test, and it is among the top performers in the 4K write test. In the benchmark score, the SSD achieves a very good result and can clearly set itself apart from the SSDs we have tested so far; in the copy benchmark, it also achieves a very good result and belongs to the top group.

In CrystalDiskMark, the Kingston FURY Renegade G5 achieves 14,770.58 MB/s in sequential read and 13,981.02 MB/s in sequential write. The results are therefore 29 MB/s (less than 1%) and 19 MB/s (less than 1%) below the manufacturer’s specifications. In the 4K test, the SSD achieved 105.17 MB/s when reading and 332.12 MB/s when writing. The results are similar to those of the AS SSD benchmark. The SSD is once again the fastest SSD we have tested so far in the Seq test and in the 4K test for reading, and in the 4K test for writing it once again belongs to the top group.

In the ATTO benchmark, the Kingston FURY Renegade G5 achieves up to ~5,050 MB/s when reading and 12,415 MB/s when writing. The results are very good, the SSD belongs to the top group when reading and is again the fastest SSD we have tested so far when writing. In HD Tune, the SSD also achieves a very good result with 3,029.7 MB/s. The access times are consistently very low.

wdt_ID	SSD	Seq (lesen in MB/s)	Seq (schreiben in MB/s)	4K (lesen in MB/s)	4K (schreiben in MB/s)	4K-64-Thrd (lesen in MB/s)	4K-64-Thrd (schreiben in MB/s)
1	Samsung SSD 960 PRO 2 TB	2.278,89	1.832,34	47,47	197,25	1.690,47	1.211,18
2	Samsung SSD 960 EVO 1 TB	2.833,98	1.977,16	38,95	207,29	1.301,00	992,33
3	Plextor M8SeGN 256 GB	2.170,45	637,79	35,37	5,44	282,25	8,73
4	Plextor M9PeG 512 GB	2.246,29	880,66	41,74	7,49	511,00	31,01
5	Samsung SSD 970 EVO 2TB	2.553,25	2.481,28	42,45	110,08	1.687,72	1.901,41
6	Crucial P1 500 GB	1.774,87	927,44	59,92	172,76	346,82	878,87
7	Samsung SSD 970 Evo Plus 250 GB	2.794,51	2.204,05	54,37	132,99	795,31	1.930,24
8	WD Black SN750 1TB	2.966,45	2.690,48	45,74	149,72	1.580,57	1.740,14
9	WD Blue SN550 500 GB	2.178,75	858,33	36,35	155,07	747,57	385,85
10	Corsair MP510 480 GB	2.409,10	1.264,05	48,06	148,67	684,76	1.258,88
11	LC-Power Phenom Pro 1 TB	2.926,34	2.560,03	56,02	144,17	1.199,26	1.390,36
12	Pioneer APS-SE20Q 1 TB	2.728,68	1.740,70	47,48	137,52	721,73	1.441,33
13	XPG Spectrix S40G 1 TB	2.833,85	1.496,62	46,72	110,77	1.240,11	836,95
14	Team Group Cardea IOPS 1 TB	2.860,91	2.733,69	54,90	133,84	1.998,03	1.812,39
15	Samsung SSD 980 1 TB	2.569,42	2.366,17	51,08	129,69	1.489,46	1.100,07
16	Crucial P5 2 TB	2.319,45	2.445,02	40,09	73,66	1.716,32	2.052,95
17	goodram IRDM M.2 512 GB	2.999,16	2.497,66	69,46	205,26	2.016,57	2.351,02
18	TEAMGROUP MP34 1 TB	2.968,56	2.806,79	69,46	191,71	1.767,79	2.597,34
19	Silicon Power XD80 512 GB	3.031,90	2.330,21	70,01	232,94	1.911,62	2.210,43
20	Silicon Power US70 1TB	4.285,45	3.856,62	78,81	246,76	2.928,71	3.674,07
21	Kioxia Exceria 1 TB	1.580,12	1.587,90	63,23	167,43	1.657,50	1.501,68
22	Kioxia Exceria Plus 2 TB	2.678,46	2.678,82	49,10	125,36	1.990,35	2.986,04
23	Crucial P5 Plus 1 TB	2.501,35	4.238,61	48,54	144,46	2.225,47	2.781,88
24	WD_BLACK SN750 SE 1 TB	3.157,27	2.566,19	52,84	181,71	2.233,36	2.254,34
25	TeamGroup T-Force Cardea Ceramic C440 2 TB	3.783,76	3.690,50	56,20	176,79	2.317,14	2.878,50
26	WD Blue SN570 500 GB	3.050,84	2.342,03	37,52	154,14	982,68	1.573,10
27	Corsair Force Series MP600 Pro LPX 1 TB	5.211,37	5.207,10	76,92	186,65	2.947,55	3.281,34
28	goodram PX500 512GB	2.264,99	1.561,40	49,21	184,05	881,04	831,01
29	Kingston KC3000 1 TB	5.425,19	5.172,04	90,74	190,77	2.935,80	3.132,12
30	TeamGroup T-Force Cardea Z44L 1 TB	2.639,24	2.432,48	81,06	272,34	2.275,26	993,65
31	Adata Legend 840 1 TB	3.701,46	3.976,39	75,74	235,64	1.602,58	2.219,75
32	Silicon Power XPOWER XS70 1 TB	5.138,97	5.055,37	99,34	264,38	2.971,08	2.825,82
33	Kioxia Exceria Pro 2 TB	5.307,65	5.216,05	84,56	234,07	2.368,25	3.061,54
34	Corsair Force Series MP600 GS 2 TB	3.834,92	3.476,47	93,92	253,17	2.227,09	1.384,78
35	Crucial P3 2 TB	3.126,73	2.937,83	78,29	232,44	2.237,47	2.320,77
36	Crucial P3 Plus 2 TB	3.837,97	3.874,93	81,09	243,28	2.309,87	2.884,90
37	Kingston NV2 2 TB	2.991,12	2.504,85	45,27	220,40	1.483,32	1.561,91
38	ADATA XPG GAMMIX S70 BLADE	5.468,15	5.103,35	53,62	123,57	1.593,89	1.920,43
39	TeamGroup MP44 1 TB	6.292,26	5.614,48	72,27	230,44	2.634,75	3.085,63
40	Crucial T700 2 TB	9.058,04	9.939,20	83,44	254,77	3.536,75	3.120,13
41	Crucial T500 2 TB	6.197,23	6.056,93	81,97	248,92	3.134,16	4.087,88
42	Nextorage G Series 4 TB	5.457,12	5.773,07	80,36	198,99	3.048,62	4.106,43
43	Kioxia Exceria Plus G3 2 TB	4.380,42	3.301,38	55,90	271,46	1.397,09	3.151,40
44	TeamGroup T-Create Classic 1 TB	4.371,84	4.386,65	67,66	232,00	2.848,70	3.182,26
45	TeamGroup T-Force Cardea A440 2 TB	6.154,44	5.639,12	93,37	264,84	3.245,40	4.229,33
46	Crucial T705 2 TB	10.558,92	10.663,69	81,34	251,15	3.384,47	4.454,84
47	TeamGroup T-FORCE Z540 2 TB	8.975,06	10.276,90	67,94	207,88	3.131,10	3.847,72
48	Nextorage NEM-PAB Serie 2 TB	5.828,34	5.284,82	104,02	273,17	3.110,98	4.256,08
49	TeamGroup T-Force G50 2 TB	4.080,44	4.050,31	64,47	213,21	1.932,75	2.669,97
50	Crucial P310	5.474,44	4.566,28	92,64	197,58	2.757,70	2.642,83
51	Crucial P510 1 TB	8.808,18	7.774,70	69,92	195,70	2.437,39	3.843,98
52	TeamGroup T-Force G70 Pro 2 TB	5.944,77	6.223,72	59,81	224,39	2.771,61	3.780,57
53	Kingston FURY Renegade G5 4 TB	10.674,80	11.595,52	121,57	272,07	4.264,18	4.532,31
54	Crucial T710 2 TB	10.433,28	8.804,75	120,09	272,18	4.029,13	4.453,54
55	Acer Predator GM7 2 TB	6.175,91	5.816,57	71,41	246,55	2.614,68	3.309,43
56	Acer Predator GM9 2 TB	11.120,03	8.938,80	59,82	253,20	3.044,38	4.090,81
57	BIWIN Black Opal NV7400 4 TB	6.051,24	5.004,65	67,82	198,90	2.455,59	2.796,73
58	KLEVV CRAS C925G 2 TB	5.338,48	4.674,73	66,29	176,81	2.105,19	2.999,02
	SSD	Seq (lesen in MB/s)	Seq (schreiben in MB/s)	4K (lesen in MB/s)	4K (schreiben in MB/s)	4K-64-Thrd (lesen in MB/s)	4K-64-Thrd (schreiben in MB/s)

wdt_ID	SSD	Lesen	Schreiben	Gesamt
1	Samsung SSD 960 PRO 2 TB	1.966	1.592	4.542
2	Samsung SSD 960 EVO 1 TB	1.623	1.397	3.809
3	Plextor M8SeGN 256 GB	578	82	891
4	Plextor M9PeG 512 GB	777	127	1.244
5	Samsung SSD 970 EVO 2TB	1.985	2.228	5.219
6	Crucial P1 500 GB	584	1.144	2.008
7	Samsung SSD 970 Evo Plus 250 GB	1.129	2.284	3.975
8	WD Black SN750 1TB	1.923	2.159	5.052
9	WD Blue SN550 500 GB	1.002	627	2.082
10	Corsair MP510 480 GB	974	1.534	2.961
11	LC-Power Phenom Pro 1 TB	1.548	1.791	4.122
12	Pioneer APS-SE20Q 1 TB	1.042	1.753	3.290
13	XPG Spectrix S40G 1 TB	1.570	1.097	3.409
14	Team Group Cardea IOPS 1 TB	2.338	2.216	5.744
15	Samsung SSD 980 1 TB	1.197	1.466	4.178
16	Crucial P5 2 TB	1.988	2.371	5.380
17	goodram IRDM M.2 512 GB	2.386	2.732	6.310
18	TEAMGROUP MP34 1 TB	2.134	3.070	6.298
19	Silicon Power XD80 512 GB	2.285	2.676	6.103
20	Silicon Power US70 1TB	3.436	4.306	9.479
21	Kioxia Exceria 1 TB	1.879	1.828	4.678
22	Kioxia Exceria Plus 2 TB	2.307	3.379	6.865
23	Crucial P5 Plus 1 TB	2.524	3.350	7.248
24	WD_BLACK SN750 SE 1 TB	2.602	2.693	6.592
25	TeamGroup T-Force Cardea Ceramic C440 2 TB	2.748	3.424	7.571
26	WD Blue SN570 500 GB	1.325	1.961	3.933
27	Corsair Force Series MP600 Pro LPX 1 TB	3.546	3.989	9.345
28	goodram PX500 512GB	1.157	1.171	2.896
29	Kingston KC3000 1 TB	3.525	3.913	9.227
30	TeamGroup T-Force Cardea Z44L 1 TB	2.620	1.509	5.470
31	Adata Legend 840 1 TB	2.048	2.853	5.977
32	Silicon Power XPOWER XS70 1 TB	3.584	3.596	9.018
33	Kioxia Exceria Pro 2 TB	2.984	3.817	8.330
34	Corsair Force Series MP600 GS 2 TB	2.704	1.986	6.071
35	Crucial P3 2 TB	2.628	2.847	6.819
36	Crucial P3 Plus 2 TB	2.775	3.516	7.720
37	Kingston NV2 2 TB	1.828	2.033	4.773
38	ADATA XPG GAMMIX S70 BLADE	2.194	2.554	5.854
39	TeamGroup MP44 1 TB	3.336	3.878	8.884
40	Crucial T700 2 TB	4.526	4.369	11.244
41	Crucial T500 2 TB	3.836	4.942	10.730
42	Nextorage G Series 4 TB	3.949	4.693	10.650
43	Kioxia Exceria Plus G3 2 TB	1.891	3.753	6.564
44	TeamGroup T-Create Classic 1 TB	3.381	3.853	8.972
45	TeamGroup T-Force Cardea A440 2 TB	3.954	5.058	11.010
46	Crucial T705 2 TB	4.522	5.772	12.601
47	Teamgroup T-FORCE Z540 2 TB	4.097	5.083	11.327
48	Nextorage NEM-PAB Serie 2 TB	3.798	5.058	10.779
49	TeamGroup T-Force G50 2 TB	2.405	3.288	6.927
50	Crucial P310	3.398	3.297	8.395
51	Crucial P510 1 TB	3.387	4.791	9.843
52	TeamGroup T-Force G70 Pro 2 TB	3.412	4.666	9.817
53	Kingston FURY Renegade G5 4 TB	5.453	5.964	14.251
54	Crucial T710 2 TB	5.193	5.606	13.374
55	Acer Predator GM7 2 TB	3.304	4.138	9.111
56	Acer Predator GM9 2 TB	4.216	5.238	11.483
57	BIWIN Black Opal NV7400 4 TB	3.129	3.496	8.170
58	KLEVV CRAS C925G 2 TB	2.705	3.643	7.701
	SSD	Lesen	Schreiben	Gesamt

wdt_ID	SSD	ISO (in MB/s)	Programm (in MB/s)	Spiel (in MB/s)
1	Samsung SSD 960 PRO 2 TB	1.827,04	647,49	483,93
2	Samsung SSD 960 EVO 1 TB	1.917,71	283,09	471,35
3	Plextor M8SeGN 256 GB	1.471,74	547,76	1.166,32
4	Plextor M9PeG 512 GB	1.566,28	632,28	1.130,44
5	Samsung SSD 970 EVO 2TB	1.378,01	354,96	749,40
6	Crucial P1 500 GB	977,33	363,49	558,79
7	Samsung SSD 970 Evo Plus 250 GB	1.405,19	414,16	921,26
8	WD Black SN750 1TB	1.682,28	426,18	943,93
10	WD Blue SN550 500 GB	1.108,05	349,78	419,12
11	Corsair MP510 480 GB	1.040,48	190,51	762,33
12	LC-Power Phenom Pro 1 TB	1.196,60	153,90	868,05
13	Pioneer APS-SE20Q 1 TB	961,05	322,21	748,55
14	XPG Spectrix S40G 1 TB	2.076,52	591,51	1.327,85
15	Team Group Cardea IOPS 1 TB	1.901,03	650,28	1.313,24
16	Samsung SSD 980 1 TB	1.294,84	338,29	944,94
17	Crucial P5 2 TB	1.923,18	1.010,93	1.629,58
18	goodram IRDM M.2 512 GB	2.194,08	948,05	1.298,95
19	TEAMGROUP MP34 1 TB	1.984,76	854,77	1.489,55
20	Silicon Power XD80 512 GB	2.359,27	1.065,63	1.876,26
21	Silicon Power US70 1TB	3.011,38	1.224,04	2.328,32
22	Kioxia Exceria 1 TB	1.296,82	408,44	596,72
23	Kioxia Exceria Plus 2 TB	2.076,71	1.060,45	1.763,90
24	Crucial P5 Plus 1 TB	2.917,07	410,88	1.225,89
25	WD_BLACK SN750 SE 1 TB	2.103,68	379,38	1.046,72
26	TeamGroup T-Force Cardea Ceramic C440 2 TB	2.735,59	401,44	1.156,82
27	WD Blue SN570 500 GB	2.295,18	411,62	1.099,37
28	Corsair Force Series MP600 Pro LPX 1 TB	3.076,12	413,18	1.232,93
29	goodram PX500 512GB	1.801,72	304,17	568,27
30	Kingston KC3000 1 TB	2.973,39	409,04	1.213,11
31	TeamGroup T-Force Cardea Z44L 1 TB	1.948,30	374,06	988,76
32	Adata Legend 840 1 TB	2.543,82	388,18	1.135,27
33	Silicon Power XPOWER XS70 1 TB	2.805,98	447,39	1.154,33
34	Kioxia Exceria Pro 2 TB	2.594,74	409,41	1.043,58
35	Corsair Force Series MP600 GS 2 TB	2.323,46	1.002,08	1.612,10
36	Crucial P3 2 TB	2.182,93	383,13	1.056,01
37	Crucial P3 Plus 2 TB	2.751,88	395,22	1.164,56
38	Kingston NV2 2 TB	2.112,46	1.191,60	2.398,90
39	ADATA XPG GAMMIX S70 BLADE	3.092,41	639,48	1.691,61
40	TeamGroup MP44 1 TB	1.134,91	745,34	1.069,53
41	Crucial T700 2 TB	4.661,57	1.556,02	3.005,81
42	Crucial T500 2 TB	4.188,85	1.691,40	3.166,24
43	Nextorage G Series 4 TB	4.557,63	1.058,92	2.804,48
44	Kioxia Exceria Plus G3 2 TB	2.856,23	1.470,23	2.704,32
45	TeamGroup T-Create Classic 1 TB	4.421,38	735,61	2.075,70
46	TeamGroup T-Force Cardea A440 2 TB	3.733,06	1.547,39	3.326,25
47	Crucial T705 2 TB	4.927,01	1.670,66	3.478,30
48	Teamgroup T-FORCE Z540 2 TB	5.598,50	1.497,12	3.487,36
49	Nextorage NEM-PAB Serie 2 TB	4.153,65	1.478,56	3.394,87
50	TeamGroup T-Force G50 2 TB	3.806,98	1.407,11	2.609,14
51	Crucial P310	2.138,16	1.086,43	1.960,90
52	Crucial P510 1 TB	3.649,36	1.390,70	3.024,53
53	TeamGroup T-Force G70 Pro 2 TB	4.098,01	1.045,09	2.123,61
54	Kingston FURY Renegade G5 4 TB	4.341,47	1.388,28	2.989,94
55	Crucial T710 2 TB	3.702,65	1.331,06	2.910,50
56	Acer Predator GM7 2 TB	4.799,76	1.352,92	2.969,94
57	Acer Predator GM9 2 TB	4.417,49	1.367,59	3.117,41
58	BIWIN Black Opal NV7400 4 TB	3.657,22	1.194,85	2.724,26
59	KLEVV CRAS C925G 2 TB	3.883,84	1.229,35	2.868,85
	SSD	ISO (in MB/s)	Programm (in MB/s)	Spiel (in MB/s)

wdt_ID	SSD	Seq Q32T1 (lesen in MB/s)	Seq Q32T1 (schreiben in MB/s)	4K Q32T1 (lesen in MB/s)	4K Q32T1 (schreiben in MB/s)	Seq (lesen in MB/s)	Seq (schreiben in MB/s)	4K (lesen in MB/s)	4K (schreiben in MB/s)
1	Samsung SSD 960 PRO 2 TB	3.470,00	1.922,00	779,40	681,70	2.729,00	1.856,00	53,17	250,90
2	Samsung SSD 960 EVO 1 TB	3.402,00	1.934,00	829,10	741,00	2.087,00	1.890,00	52,95	260,80
3	Plextor M8SeGN 256 GB	2.249,00	369,00	560,20	366,70	1.573,00	437,70	39,15	143,90
4	Plextor M9PeG 512 GB	2.788,00	1.316,00	599,90	633,70	1.810,00	1.344,00	45,53	192,70
5	Samsung SSD 970 EVO 2TB	3.560,00	2.508,00	337,00	231,70	2.447,00	2.489,00	50,01	153,70
6	Crucial P1 500 GB	1.928,00	978,30	355,30	347,20	1.688,00	973,20	57,60	146,70
7	Samsung SSD 970 Evo Plus 250 GB	3.556,20	2.372,80	579,10	1.329,40	355,30	302,30	46,36	173,90
8	WD Black SN750 1TB	3.411,80	2.990,90	1.297,90	1.395,20	331,20	315,00	42,26	195,00
9	WD Blue SN550 500 GB	2.430,00	1.519,00	361,20	267,10	1.675,00	1.235,00	38,02	139,30
10	Corsair MP510 480 GB	3.392,00	1.354,00	274,40	307,70	1.003,00	1.338,00	39,68	139,30
11	LC-Power Phenom Pro 1 TB	3.468,00	3.019,00	440,00	342,40	2.760,00	2.736,00	55,64	132,30
12	Pioneer APS-SE20Q 1 TB	3.405,00	1.949,00	486,60	286,90	1.263,00	1.930,00	39,60	121,90
13	XPG Spectrix S40G 1 TB	3.546,00	2.721,00	391,00	289,90	2.956,00	2.016,00	50,90	110,70
14	Team Group Cardea IOPS 1 TB	3.459,00	3.021,00	383,10	283,80	1.844,00	2.332,00	44,14	120,30
15	Samsung SSD 980 1 TB	3.540,00	2.759,00	433,70	310,60	1.879,00	2.082,00	52,75	123,70
16	Crucial P5 2 TB	3.189,00	3.155,00	730,60	680,30	1.956,00	1.749,00	56,98	115,90
17	goodram IRDM M.2 512 GB	3.461,00	2.501,00	608,10	396,50	2.179,00	2.489,00	58,44	229,94
18	TEAMGROUP MP34 1 TB	3.460,00	2.798,00	619,80	554,00	2.001,00	2.976,00	49,55	212,30
19	Silicon Power XD80 512 GB	3.468,00	2.487,00	675,60	660,20	2.385,00	2.477,00	45,59	234,80
20	Silicon Power US70 1TB	4.978,00	4.238,00	733,70	671,30	2.707,00	4.214,00	55,39	254,40
21	Kioxia Exceria 1 TB	1.737,30	1.452,32	501,31	463,31	1.196,81	1.331,56	46,98	185,42
22	Kioxia Exceria Plus 2 TB	3.424,00	3.204,00	800,10	734,40	1.858,00	2.348,00	55,68	242,00
23	Crucial P5 Plus 1 TB	6.638,76	5.000,90	684,20	495,25	4.319,68	4.490,32	70,47	215,02
24	WD_BLACK SN750 SE 1 TB	3.608,20	2.800,76	735,60	582,10	2.534,99	2.860,58	58,41	306,98
25	TeamGroup T-Force Cardea Ceramic C440 2 TB	5.013,42	4.267,00	790,40	461,97	2.722,93	4.049,53	60,67	258,68
26	WD Blue SN570 500 GB	3.523,00	2.496,00	679,90	485,00	2.663,10	2.334,90	69,93	234,70
27	Corsair Force Series MP600 Pro LPX 1 TB	6.985,06	5.851,75	796,04	618,63	4.234,78	5.284,88	84,67	312,15
28	goodram PX500 512GB	2.572,58	1.837,37	508,83	436,76	2.258,18	1.852,41	65,60	206,57
29	Kingston KC3000 1 TB	6.982,25	6.116,38	775,38	604,27	4.346,05	5.158,72	86,68	306,92
30	TeamGroup T-Force Cardea Z44L 1 TB	3.508,57	3.214,89	689,92	465,24	2.154,89	3.202,24	69,67	298,68
31	Adata Legend 840 1 TB	5.033,08	4.828,19	680,23	496,77	3.456,78	4.708,73	95,22	294,05
32	Silicon Power XPOWER XS70 1 TB	7.002,90	5.874,20	841,60	687,00	4.279,90	5.435,50	89,30	337,09
33	Kioxia Exceria Pro 2 TB	6.978,80	6.006,07	840,78	674,03	3.570,61	5.681,97	71,69	310,02
34	Corsair Force Series MP600 GS 2 TB	4.969,65	4.749,09	647,26	428,19	2.921,09	4.734,90	77,81	265,79
35	Crucial P3 2 TB	3.672,00	3.259,00	569,90	407,50	2.724,00	2.972,00	59,58	234,80
36	Crucial P3 Plus 2 TB	5.028,00	4.351,00	566,70	362,20	3.050,00	4.296,00	60,66	249,40
37	Kingston NV2 2 TB	3.784,32	2.944,50	681,02	477,24	3.252,05	2.855,73	57,56	233,65
38	ADATA XPG GAMMIX S70 BLADE	7.141,24	5.427,86	464,83	229,07	3.243,98	5.117,66	64,16	165,74
39	TeamGroup MP44 1 TB	7.427,45	6.590,66	708,80	467,82	4.924,22	5.424,73	73,14	244,66
40	Crucial T700 2 TB	12.341,34	11.779,15	703,55	493,06	8.996,78	9.691,96	91,27	303,43
41	Crucial T500 2 TB	7.435,37	7.000,65	663,23	469,37	5.812,01	6.021,80	90,71	299,76
42	Nextorage G Series 4 TB	6.374,84	6.494,85	770,17	532,92	3.943,69	5.113,27	64,71	241,88
43	Kioxia Exceria Plus G3 2 TB	5.075,66	3.974,58	647,90	421,44	3.171,24	3.959,23	62,73	331,70
44	TeamGroup T-Create Classic 1 TB	5.223,00	4.827,00	625,80	400,20	3.041,00	4.631,00	76,03	262,50
45	TeamGroup T-Force Cardea A440 2 TB	7.335,96	7.001,30	831,74	674,49	4.166,18	6.076,33	78,90	314,83
46	Crucial T705 2 TB	14.523,97	12.655,70	615,83	427,94	9.068,47	10.517,10	92,74	305,31
47	TeamGroup T-FORCE Z540 2 TB	12.269,25	11.710,84	635,50	411,40	8.313,36	9.044,73	77,25	264,71
48	Nextorage NEM-PAB Serie 2 TB	7.380,67	6.609,40	636,71	425,10	4.419,53	5.901,55	86,57	331,87
49	TeamGroup T-Force G50 2 TB	4.777,46	4.155,83	610,11	460,41	3.565,48	4.125,78	73,59	257,95
50	Crucial P310	7.189,65	6.276,41	459,19	302,84	3.894,61	5.368,62	78,99	231,96
51	Crucial P510 1 TB	11.032,25	9.409,01	627,56	416,20	5.845,41	7.129,38	77,70	262,42
52	TeamGroup T-Force G70 Pro 2 TB	7.452,49	6.780,90	642,66	555,62	3.514,95	6.114,35	66,67	282,67
53	Kingston FURY Renegade G5 4 TB	14.770,58	13.981,02	644,76	526,00	8.843,91	10.815,62	105,17	332,12
54	Crucial T710 2 TB	14.386,50	13.282,03	615,54	501,13	9.203,66	10.687,61	101,72	323,83
55	Acer Predator GM7 2 TB	7.412,03	6.606,12	838,64	766,70	5.119,74	5.648,22	84,33	304,07
56	Acer Predator GM9 2 TB	14.741,35	10.176,83	635,49	519,55	6.644,29	9.026,12	76,08	300,66
57	BIWIN Black Opal NV7400 4 TB	7.364,74	6.370,52	749,77	519,78	4.106,97	5.146,38	72,90	254,75
58	KLEVV CRAS C925G 2 TB	6.563,06	5.776,32	755,63	522,08	4.297,24	4.446,20	68,54	216,68
	SSD	Seq Q32T1 (lesen in MB/s)	Seq Q32T1 (schreiben in MB/s)	4K Q32T1 (lesen in MB/s)	4K Q32T1 (schreiben in MB/s)	Seq (lesen in MB/s)	Seq (schreiben in MB/s)	4K (lesen in MB/s)	4K (schreiben in MB/s)

wdt_ID	SSD	512 B	1 KB	2 KB	4 KB	8 KB	16 KB	32 KB	64 KB	128 KB	256 KB	512 KB	1 MB	2 MB	4 MB	8 MB	12 MB	16 MB	24 MB	32 MB	48 MB	64 MB
1	Samsung SSD 960 PRO 2 TB	25.856	52.604	94.720	188.967	390.192	665.983	1.029.617	1.376.256	1.646.470	1.951.444	2.122.118	2.154.608	2.162.012	2.091.922	2.051.004	2.111.226	2.086.718	2.114.775	1.811.794	1.621.533	1.281.123
2	Samsung SSD 960 EVO 1 TB	25.216	54.528	104.448	72.282	46.864	60.532	86.421	586.889	1.760.668	1.913.459	1.670.525	1.623.900	2.071.261	1.950.839	2.002.054	2.003.648	2.121.013	2.104.165	2.112.999	2.102.539	2.057.469
3	Plextor M8SeGN 256 GB	11.307	22.016	41.568	73.252	131.984	178.826	222.564	401.080	676.785	921.819	1.250.067	1.567.506	1.780.775	1.912.685	1.973.790	1.982.197	1.993.332	1.987.103	1.998.278	2.003.372	1.993.332
4	Plextor M9PeG 512 GB	9.472	18.386	35.661	58.368	103.928	147.456	218.453	480.704	386.453	652.099	1.167.968	1.785.895	2.021.351	2.283.650	1.997.287	1.909.394	1.864.135	1.851.789	1.833.575	1.786.721	1.903.586
5	Samsung SSD 970 EVO 2TB	18.048	35.750	69.831	134.234	250.478	441.406	726.616	1.050.532	1.327.331	1.577.490	1.677.721	1.669.374	1.754.904	1.740.479	1.685.826	1.560.527	1.571.329	1.478.186	1.405.771	1.258.291	1.559.915
6	Crucial P1 500 GB	17.364	33.963	65.536	178.753	308.476	550.208	858.014	1.228.369	1.345.114	1.309.691	1.407.153	1.514.720	1.566.695	1.642.025	1.651.910	1.655.136	1.655.093	1.648.795	1.645.581	1.500.354	1.491.308
7	Samsung SSD 970 Evo Plus 250 GB	38.570	79.100	162.680	316.410	628.910	1.190.000	2.430.000	2.670.000	3.050.000	3.100.000	3.100.000	2.890.000	3.250.000	3.240.000	3.260.000	3.250.000	3.200.000	2.630.000	2.530.000	2.840.000	2.330.000
8	WD Black SN750 1TB	11.700	23.380	48.710	211.390	419.920	863.280	1.470.000	1.880.000	1.320.000	2.140.000	2.690.000	3.150.000	3.000.000	3.090.000	3.240.000	3.150.000	3.260.000	3.260.000	3.250.000	3.250.000	3.260.000
10	WD Blue SN550 500 GB	10.597	19.359	38.526	124.306	233.766	417.792	709.158	1.081.344	1.467.223	1.760.668	1.581.379	1.548.529	1.613.193	1.698.098	1.715.461	1.668.821	1.706.736	1.688.981	1.714.585	1.725.728	1.719.706
11	Corsair MP510 480 GB	19.918	38.144	75.435	140.621	253.308	380.600	687.472	965.054	1.267.159	1.317.547	1.118.481	1.374.913	1.665.232	1.889.472	2.044.594	2.087.967	1.903.332	2.093.059	2.115.747	2.092.999	2.142.128
12	LC-Power Phenom Pro 1 TB	19.200	38.400	73.870	140.959	258.801	464.620	754.312	1.097.728	1.307.451	1.389.679	1.918.126	1.987.821	2.061.083	2.107.690	2.121.013	2.107.690	2.063.618	2.079.820	2.077.673	2.084.688	2.064.888
13	Pioneer APS-SE20Q 1 TB	19.968	14.774	76.417	16.618	272.384	17.693	707.398	109.226	978.149	1.410.065	119.156	993.910	1.667.715	1.893.590	2.041.023	2.066.159	2.121.013	2.111.226	2.148.171	1.207.464	1.224.073
14	XPG Spectrix S40G 1 TB	12.099	25.663	53.760	42.268	176.783	341.177	500.029	1.106.509	870.842	1.442.368	1.959.382	2.105.376	2.187.251	1.807.420	2.039.583	2.055.624	2.059.777	2.140.036	2.176.503	2.220.513	2.214.592
15	Team Group Cardea IOPS 1 TB	18.641	37.376	73.252	140.682	251.896	384.696	649.882	827.727	803.908	1.327.331	1.086.524	1.476.395	1.714.821	1.874.362	1.968.694	2.006.974	2.029.663	2.050.548	2.054.691	2.062.369	2.064.888
16	Samsung SSD 980 1 TB	17.792	35.152	68.776	132.788	247.808	445.350	741.763	1.097.728	450.861	750.770	1.153.689	1.538.253	1.811.794	2.006.844	2.118.335	2.154.608	2.184.533	2.199.809	2.201.734	2.219.271	2.221.056
17	Crucial P5 2 TB	6.495	12.926	25.726	93.732	148.742	275.937	408.801	763.332	1.006.632	793.810	1.524.448	1.461.777	1.698.131	1.802.924	1.855.850	1.876.773	1.851.279	1.845.493	1.819.901	1.807.420	1.802.924
18	goodram IRDM M.2 500GB	27.520	54.136	107.288	205.422	355.136	533.963	813.498	1.178.220	1.519.143	1.822.791	1.767.745	1.988.410	2.115.747	2.198.106	2.209.069	2.171.169	2.236.962	2.250.047	2.259.110	2.277.782	2.281.701
19	TEAMGROUP MP34 1 TB	26.046	43.922	104.996	201.845	349.880	490.242	823.704	1.206.386	1.515.411	1.827.226	1.776.411	1.983.513	2.126.221	2.176.503	2.171.169	2.203.574	2.214.592	2.233.543	2.226.050	2.248.063	2.242.458
20	Silicon Power XD80 512 GB	30.464	59.754	118.013	224.878	388.792	553.254	906.575	1.285.027	1.605.027	1.920.576	1.851.279	2.090.008	2.242.458	2.281.701	2.302.755	2.341.298	2.348.810	2.357.382	2.368.548	2.374.367	2.380.215
21	Silicon Power US70 1TB	32.000	63.074	124.142	236.575	357.179	608.075	1.009.776	1.517.957	2.025.776	2.523.330	2.804.549	3.048.896	3.197.246	3.280.134	3.130.636	3.144.174	3.213.192	3.220.477	3.239.739	3.256.753	3.263.855
22	Kioxia Exceria 1 TB	20.811	37.538	83.492	123.833	271.851	509.448	770.965	1.133.609	1.397.234	1.356.832	1.104.940	1.228.981	1.312.642	1.293.664	1.351.833	1.353.662	1.361.629	1.373.816	1.374.913	1.366.144	1.381.653
23	Kioxia Exceria Plus 2 TB	16.728	33.374	65.719	126.890	271.851	476.762	765.226	902.952	1.264.015	1.414.697	1.140.850	1.491.308	1.798.450	2.008.245	2.105.376	2.134.712	2.155.321	2.160.578	2.171.169	2.136.026	2.110.549
24	Crucial P5 Plus 1 TB	17.236	31.331	52.851	148.553	282.066	510.722	819.641	937.951	1.330.624	1.463.843	2.220.633	1.685.826	1.815.505	1.869.699	1.931.669	1.918.582	1.931.669	1.904.440	1.636.474	1.878.046	1.879.048
26	WD_BLACK SN750 SE 1 TB	14.427	28.529	55.668	134.904	227.382	379.651	496.325	711.348	597.922	884.859	1.563.701	1.884.897	2.090.008	2.226.050	2.264.716	2.283.798	2.297.124	2.312.535	2.314.098	2.317.249	2.314.098
27	TeamGroup T-Force Cardea Ceramic C440 2 TB	24.897	49.284	97.316	185.976	336.750	482.050	844.155	1.139.277	1.460.219	1.774.869	1.409.286	1.819.901	2.214.592	2.512.450	2.651.214	2.652.613	2.744.601	2.761.337	2.776.918	2.758.919	2.797.590
28	WD Blue SN570 500 GB	8.491	15.889	33.032	137.625	249.232	442.506	594.969	845.998	1.197.406	1.340.604	1.865.060	1.736.149	1.983.513	2.054.691	2.100.228	2.035.471	2.024.695	2.076.180	2.126.221	2.173.128	2.192.665
29	Corsair Force Series MP600 Pro LPX 1 TB	25.984	51.200	100.138	191.084	319.635	464.566	723.010	866.509	1.056.324	1.407.713	1.772.067	2.165.860	2.458.443	2.923.554	3.122.887	3.204.613	3.181.457	3.264.755	3.263.855	3.280.877	3.347.075
30	goodram PX500 512GB	27.579	48.774	108.068	191.084	326.196	595.334	878.411	1.273.495	1.564.537	1.796.889	1.898.689	1.780.775	1.798.450	1.833.217	1.793.999	1.781.541	1.776.411	1.777.142	1.785.161	1.772.067	1.798.450
32	Kingston KC3000 1 TB	25.600	50.688	100.138	190.062	345.784	518.914	821.690	1.036.808	1.282.192	1.721.735	2.203.574	2.253.532	2.584.934	2.960.685	3.056.443	3.114.270	3.146.250	3.220.477	3.205.199	3.238.295	3.247.737
33	TeamGroup T-Force Cardea Z44L 1 TB	8.364	16.770	31.936	64.512	113.644	186.533	296.752	388.455	603.979	943.718	1.287.460	1.632.819	1.828.757	1.978.639	2.126.221	1.977.314	2.049.630	1.958.023	1.657.008	1.772.067	1.851.279
34	Adata Legend 840 1 TB	30.132	66.048	134.180	255.598	403.691	779.157	1.206.386	1.689.880	2.073.617	1.386.909	1.793.999	1.780.775	1.936.474	2.176.503	2.415.919	2.522.780	2.512.450	2.603.790	2.644.684	2.658.101	2.730.981
35	Silicon Power XPOWER XS70 1 TB	38.687	76.645	147.529	269.459	387.822	608.075	888.799	1.190.002	1.354.625	1.573.633	2.100.228	1.968.964	2.100.228	2.543.777	2.829.099	2.968.437	3.048.896	3.091.087	3.087.007	3.174.954	3.165.823
36	Kioxia Exceria Pro 2 TB	35.584	69.668	134.180	250.478	353.976	592.733	844.155	1.106.509	1.307.836	1.360.109	1.271.888	172.389	1.964.161	2.342.952	2.710.801	2.837.446	2.864.199	2.795.513	2.857.110	2.929.752	2.945.426
37	Corsair Force Series MP600 GS 2 TB	14.774	28.928	57.058	104.971	169.808	298.961	356.554	493.887	723.955	1.130.796	1.494.919	1.833.217	2.049.630	2.259.110	2.434.341	2.368.910	2.458.443	2.486.041	2.537.449	2.609.789	2.578.567
38	Crucial P3 2 TB	24.448	48.518	92.757	207.974	368.312	636.747	1.012.294	1.425.670	1.783.612	2.080.374	2.285.946	2.403.899	2.470.674	2.464.543	2.416.572	2.479.021	2.483.027	2.498.168	2.487.983	2.510.429	2.512.450
39	Crucial P3 Plus 2 TB	23.936	46.986	93.266	197.705	388.792	716.144	1.181.810	1.626.996	2.396.373	2.943.857	3.338.759	3.572.299	3.614.814	3.777.980	3.758.096	3.727.805	3.748.724	3.768.644	3.758.096	3.821.708	3.834.792
40	Kingston NV2 2 TB	34.432	66.941	126.696	244.334	419.037	659.674	1.023.016	1.374.945	1.635.204	1.774.869	2.029.633	2.095.105	2.120.971	2.105.376	2.131.497	2.071.002	2.187.251	2.129.415	2.155.321	2.136.026	2.192.665
41	TeamGroup MP44 1 TB	16.598	32.512	91.684	210.542	389.865	675.901	1.042.381	1.534.259	1.969.079	2.558.115	3.079.309	3.280.134	3.438.089	3.690.987	3.730.120	3.787.393	3.787.331	3.718.532	3.748.724	3.765.459	3.768.675
43	ADATA XPG GAMMIX S70 BLADE	15.704	12.991	53.248	91.858	176.783	289.394	397.109	602.473	1.061.553	1.119.683	1.744.830	2.105.376	2.247.981	2.553.410	2.543.777	2.472.870	2.930.808	2.885.015	2.952.790	3.064.748	2.982.616
45	Crucial T700 2 TB	33.536	66.394	130.781	244.746	454.764	811.469	1.343.651	1.957.646	2.770.379	3.537.509	4.099.260	4.540.699	3.645.419	4.073.274	4.485.081	4.670.976	4.729.259	4.613.734	4.662.650	4.680.843	4.685.905
46	Crucial T500 2 TB	29.824	58.988	116.772	220.782	416.989	742.293	1.203.378	1.785.057	2.341.383	2.782.221	3.197.246	3.579.139	3.305.855	3.663.511	3.815.666	3.846.686	3.815.666	3.737.214	3.748.724	3.728.270	3.720.887
47	Nextorage G Series 4 TB	26.880	53.504	107.288	207.974	381.694	550.502	925.133	1.298.100	1.609.039	2.028.099	2.247.981	2.717.494	3.115.176	3.414.017	3.539.074	3.511.947	3.472.299	3.494.561	3.489.660	3.495.942	3.504.206
48	Kioxia Exceria Plus G3 2 TB	27.008	51.712	94.756	219.758	390.840	673.500	1.053.152	1.400.709	1.361.331	1.486.198	2.003.249	2.308.413	2.409.894	2.618.882	2.982.616	2.899.404	3.004.874	2.978.058	2.997.418	3.004.874	3.019.898
49	TeamGroup T-Create Classic 1 TB	27.451	57.856	115.748	221.806	413.906	779.356	1.392.558	2.308.697	3.438.129	4.516.663	5.236.148	5.556.145	5.087.554	4.941.349	4.995.697	4.982.833	5.315.553	5.384.607	5.275.224	5.157.748	5.037.307
50	TeamGroup T-Force Cardea A440 2 TB	35.840	70.692	136.777	262.111	347.832	636.747	1.028.637	1.447.581	1.773.165	2.023.164	2.080.374	2.690.917	3.221.225	3.455.109	3.748.724	3.631.602	3.720.887	3.604.834	3.587.998	3.644.705	3.605.849
51	Crucial T705 2 TB	35.968	70.180	133.156	236.575	438.421	777.214	1.275.068	1.886.002	2.656.219	3.422.552	4.129.776	4.507.064	3.787.331	4.418.139	4.807.799	4.945.740	4.995.697	4.877.049	4.874.574	4.882.921	4.886.730
52	TeamGroup T-FORCE Z540 2 TB	27.579	47.752	82.980	211.566	410.845	754.581	1.262.148	1.752.452	2.236.179	3.098.323	3.834.792	4.362.076	3.587.998	4.043.101	4.451.776	4.636.803	4.705.905	4.706.009	4.741.024	4.772.185	4.795.869
54	Nextorage NEM-PAB Serie 2 TB	26.496	52.859	101.159	220.232	248.430	342.026	475.576	684.052	1.061.553	1.684.306	2.337.124	2.923.554	3.322.220	3.347.075	3.539.074	3.589.738	3.587.998	3.580.808	3.623.878	3.644.705	3.663.511
55	TeamGroup T-Force G50 2 TB	26.496	59.499	115.970	216.146	409.820	730.701	1.190.002	1.748.103	2.236.179	1.749.146	2.147.483	2.531.153	2.744.601	2.822.182	2.850.055	2.823.330	2.857.110	2.863.697	2.878.484	2.893.760	2.902.004
56	Crucial P310	22.656	44.720	87.370	177.362	324.967	576.389	1.020.465	1.521.742	2.063.326	2.570.685	2.960.685	3.130.636	3.263.855	3.347.075	3.363.687	3.324.602	3.322.220	3.280.877	3.355.443	3.363.748	3.322.220
57	Crucial P510 1 TB	10.290	30.312	56.179	143.739	248.613	354.468	617.277	695.167	860.091	2.169.627	3.019.898	3.645.419	3.556.769	4.340.374	4.485.081	4.511.206	4.563.402	4.613.734	4.630.511	4.605.345	4.540.699
58	TeamGroup T-Force G70 Pro 2 TB	32.813	65.883	127.012	241.262	445.661	775.061	1.267.159	1.819.227	2.335.559	1.275.068	2.075.186	2.518.653	2.989.998	3.388.665	3.605.849	3.667.918	3.645.419	3.589.738	3.645.419	3.662.748	3.681.783
59	Kingston FURY Renegade G5 4 TB	25.025	48.128	85.028	196.681	424.120	758.677	1.296.403	1.995.309	2.763.505	3.555.196	4.160.749	4.485.081	4.262.994	4.717.553	4.953.671	5.039.440	5.049.775	4.901.373	4.898.947	4.870.804	4.886.730
60	Crucial T710 2 TB	22.727	44.831	87.881	144.457	417.992	764.957	1.291.452	1.985.382	2.763.505	3.560.005	4.284.256	4.685.905	4.966.055	4.764.729	4.966.055	5.052.039	5.062.306	4.889.181	4.862.478	4.846.751	4.874.574
61	Acer Predator GM7 2 TB	18.896	37.793	111.374	226.926	424.120	728.884	1.131.085	1.552.127	2.174.814	2.736.209	3.173.621	3.363.687	3.472.299	3.681.783	3.739.399	3.750.079	3.720.887	3.658.771	3.663.511	3.680.971	3.681.783
62	Acer Predator GM9 2 TB	19.584	38.718	78.884	152.269	262.111	424.048	661.323	921.567	1.314.318	2.058.219	2.952.790	3.844.260	4.462.822	4.929.087	5.074.899	5.126.371	5.100.273	4.921.316	4.904.746	4.895.097	4.904.746
63	BIWIN Black Opal NV7400 4 TB	23.040	45.454	90.434	200.777	353.093	560.046	829.882	1.181.144	1.623.092	1.967.128	2.524.887	2.281.701	3.158.064	3.414.017	3.547.900	3.631.602	3.636.440	3.690.987	3.730.120	3.737.498	3.758.096
64	KLEVV CRAS C925G 2 TB	17.619	41.265	75.113	168.009	287.971	523.010	880.607	1.314.362	1.476.395	2.119.418	2.638.186	2.763.306	3.181.457	3.338.749	3.446.578	3.468.802	3.504.206	3.545.529	3.556.769	3.579.139	3.570.323
	SSD	512 B	1 KB	2 KB	4 KB	8 KB	16 KB	32 KB	64 KB	128 KB	256 KB	512 KB	1 MB	2 MB	4 MB	8 MB	12 MB	16 MB	24 MB	32 MB	48 MB	64 MB

wdt_ID	SSD	512 B	1 KB	2 KB	4 KB	8 KB	16 KB	32 KB	64 KB	128 KB	256 KB	512 KB	1 MB	2 MB	4 MB	8 MB	12 MB	16 MB	24 MB	32 MB	48 MB	64 MB
1	Samsung SSD 960 PRO 2 TB	76.544	154.112	298.496	564.224	974.848	610.304	959.460	1.362.629	1.736.704	1.772.954	1.723.012	1.743.475	1.880.853	1.864.135	1.839.607	1.774.740	1.775.366	1.742.785	1.709.344	1.536.037	1.606.345
2	Samsung SSD 960 EVO 1 TB	27.008	56.434	111.337	212.460	393.216	680.628	1.056.768	1.454.539	1.496.107	1.682.899	1.807.889	1.847.711	1.893.590	1.910.844	1.906.501	1.886.493	1.853.836	1.797.558	1.711.960	1.620.005	1.605.595
3	Plextor M8SeGN 256 GB	16.853	33.280	65.024	120.776	211.566	346.101	500.029	671.088	754.000	855.864	979.691	989.319	989.319	989.319	986.895	986.309	984.482	983.971	984.482	981.467	979.691
4	Plextor M9PeG 512 GB	21.888	43.520	84.992	164.864	293.444	507.904	813.101	1.170.866	1.414.446	849.843	1.245.339	1.494.407	1.350.097	798.915	947.865	735.842	574.365	635.982	607.649	605.113	596.419
5	Samsung SSD 970 EVO 2TB	15.447	31.586	61.797	120.776	227.950	421.028	732.959	1.173.618	1.631.147	2.011.693	1.954.627	2.348.810	2.487.938	1.494.021	2.494.021	2.492.090	2.494.021	2.491.416	2.483.027	2.454.597	2.397.934
6	Crucial P1 500 GB	23.936	47.360	92.672	178.176	312.562	551.581	874.358	980.588	983.040	980.588	984.578	975.419	982.272	975.419	980.586	978.035	978.352	971.412	967.334	964.036	965.161
7	Samsung SSD 970 Evo Plus 250 GB	37.480	75.680	150.880	303.710	552.730	810.330	1.021.000	1.080.000	744.420	795.450	604.840	877.190	978.000	767.750	572.660	486.220	562.190	621.600	570.000	561.370	460.160
8	WD Black SN750 1TB	11.390	28.670	65.100	283.200	572.270	1.090.000	1.800.000	2.220.000	2.470.000	2.450.000	2.470.000	2.690.000	2.410.000	2.240.000	2.260.000	2.340.000	2.420.000	2.020.000	1.860.000	1.840.000	1.650.000
10	WD Blue SN550 500 GB	15.665	24.003	52.473	157.302	268.991	484.999	720.896	918.137	1.138.418	1.372.823	1.436.405	1.287.724	1.166.704	1.252.031	1.253.902	785.940	662.607	571.560	535.073	531.814	531.555
11	Corsair MP510 480 GB	18.513	35.072	66.048	148.183	265.534	375.565	716.657	1.167.779	1.572.341	1.717.495	2.049.630	2.147.483	2.171.169	2.176.503	2.203.574	2.209.069	2.080.374	1.363.665	1.355.082	1.366.144	1.364.926
12	LC-Power Phenom Pro 1 TB	19.024	37.888	75.076	144.684	262.144	482.122	819.200	1.252.176	1.667.000	1.682.899	2.097.152	2.383.127	2.595.485	2.741.375	2.773.093	2.777.684	2.728.002	2.732.445	2.723.574	2.730.461	2.735.647
13	Pioneer APS-SE20Q 1 TB	18.816	36.772	71.832	123.904	139.264	184.269	179.327	341.656	437.949	1.743.322	583.839	528.693	1.815.716	1.811.794	1.804.001	1.834.243	1.835.581	1.820.971	1.825.594	1.809.290	1.093.214
14	XPG Spectrix S40G 1 TB	13.056	26.106	52.224	115.682	186.533	328.234	549.136	501.276	534.872	829.373	1.237.930	1.480.579	1.620.987	1.759.164	1.807.420	1.822.987	1.824.318	1.836.424	1.837.699	1.841.401	1.846.730
15	Team Group Cardea IOPS 1 TB	17.536	35.152	69.322	133.883	245.768	391.908	698.617	1.098.272	1.098.099	1.538.085	1.740.479	2.155.321	2.416.572	2.783.775	2.857.110	2.906.652	2.923.554	2.946.394	2.952.790	2.944.401	2.938.099
16	Samsung SSD 980 1 TB	16.512	32.941	64.700	127.680	239.865	439.074	756.184	1.084.175	1.285.019	1.114.112	1.512.369	1.950.839	2.226.276	2.429.133	2.530.500	2.567.941	2.577.145	2.591.742	2.593.078	2.602.310	2.589.279
17	Crucial P5 2 TB	5.196	10.515	21.906	73.541	138.628	261.459	462.409	757.705	1.203.378	1.370.037	1.494.919	1.855.850	2.039.583	2.203.574	2.314.098	2.329.707	2.331.325	2.347.136	2.337.124	2.362.757	2.374.367
18	goodram IRDM M.2 500GB	24.832	48.263	99.364	192.105	34.832	521.705	884.377	1.371.516	1.934.909	2.361.218	2.476.835	2.506.276	2.506.276	2.500.134	2.500.134	2.504.276	2.506.276	2.504.276	2.500.134	2.504.306	2.487.938
20	TEAMGROUP MP34 1 TB	24.987	40.960	94.785	171.676	337.592	495.954	892.528	1.355.173	1.964.193	2.402.334	2.776.918	2.945.426	2.997.418	3.004.874	2.975.858	2.992.692	2.982.616	2.975.858	2.982.616	2.944.401	2.938.099
21	Silicon Power XD80 512 GB	28.600	57.200	111.885	212.590	386.744	570.880	980.484	1.481.666	1.944.584	2.341.383	2.487.938	2.470.674	2.470.674	2.476.835	2.470.674	2.460.658	2.458.443	2.460.658	2.476.835	2.466.749	2.483.027
22	Silicon Power US70 1TB	30.848	61.440	120.868	232.489	365.350	649.035	1.139.277	1.823.763	2.636.829	3.519.996	3.959.422	4.083.432	4.160.749	4.196.385	4.206.824	4.179.769	4.160.749	4.152.360	4.150.373	4.131.702	4.129.776
23	Kioxia Exceria 1 TB	17.792	40.960	67.072	130.271	275.251	471.500	866.509	1.304.574	1.581.365	1.631.288	1.620.987	1.632.819	1.640.803	1.628.855	1.636.801	1.640.438	1.640.803	1.636.398	1.640.803	1.509.949	1.338.830
24	Kioxia Exceria Plus 2 TB	17.362	32.859	64.567	125.871	268.435	490.242	838.074	1.275.068	1.526.664	1.986.857	1.719.044	2.181.864	2.446.332	2.631.720	2.737.774	2.768.240	2.776.918	2.603.790	2.565.927	2.516.582	2.506.276
25	Crucial P5 Plus 1 TB	18.048	34.560	70.005	151.247	293.011	543.703	975.606	1.605.027	1.872.793	2.676.091	2.446.332	2.989.998	3.739.399	4.093.640	4.165.377	4.190.140	4.196.385	4.295.545	4.150.373	4.142.005	4.093.640
27	WD_BLACK SN750 SE 1 TB	23.493	47.888	95.780	185.417	337.592	621.353	1.081.933	1.694.105	1.863.499	2.456.886	2.717.494	2.578.567	2.677.660	2.770.095	2.756.549	2.754.468	2.751.463	2.740.832	2.744.601	2.731.937	2.730.981
28	TeamGroup T-Force Cardea Ceramic C440 2 TB	23.296	46.475	92.196	178.826	331.923	523.010	886.582	1.474.822	1.858.886	2.623.747	2.657.776	2.916.335	3.623.878	3.806.174	3.768.675	3.768.644	3.758.096	3.709.305	3.720.887	3.680.971	3.663.511
29	WD Blue SN570 500 GB	8.131	35.916	73.764	158.397	288.194	523.010	882.182	1.029.109	1.460.219	1.717.495	1.644.825	2.019.781	2.302.755	2.476.835	2.476.835	2.466.749	2.476.835	2.466.749	2.470.674	2.436.593	2.428.389
30	Corsair Force Series MP600 Pro LPX 1 TB	24.514	49.029	97.074	188.019	355.136	576.389	1.023.016	1.635.204	2.213.019	2.966.413	3.438.089	3.347.075	4.217.315	4.862.478	5.154.496	5.233.489	5.262.134	5.259.657	5.234.491	5.145.012	5.262.134
31	goodram PX500 512GB	23.365	49.540	95.268	174.306	320.881	523.010	886.582	1.241.591	1.676.148	1.818.378	1.846.730	1.865.060	1.865.060	1.860.443	1.842.204	1.831.923	1.819.901	1.818.552	1.811.939	1.811.939	1.811.939
33	Kingston KC3000 1 TB	24.131	47.872	95.031	184.955	347.832	547.789	967.454	1.681.494	2.196.545	2.907.603	3.221.225	3.181.457	4.073.274	4.862.478	5.169.868	5.508.936	5.288.379	5.344.623	5.368.709	5.284.823	5.208.449
34	TeamGroup T-Force Cardea Z44L 1 TB	25.600	74.020	145.629	272.629	476.762	860.499	1.433.862	2.158.471	2.796.029	3.090.729	3.189.332	3.197.246	3.197.246	3.064.027	3.122.887	3.114.270	3.115.176	3.121.055	3.115.176	3.131.746	3.122.887
35	Adata Legend 840 1 TB	6.368	13.466	113.700	233.510	548.850	864.584	1.480.884	2.308.697	3.288.220	3.890.741	4.340.374	4.429.185	4.063.166	4.119.554	4.129.776	4.190.140	4.231.494	4.221.566	4.217.315	4.229.342	4.217.315
36	Silicon Power XPOWER XS70 1 TB	35.072	72.048	142.409	272.873	424.120	779.157	1.307.836	2.091.529	2.985.558	3.938.159	4.618.964	4.898.947	4.083.432	4.729.259	4.618.964	4.921.316	4.995.697	5.083.121	5.008.124	4.970.407	4.995.697
37	Kioxia Exceria Pro 2 TB	30.208	65.280	129.249	244.334	364.216	712.048	1.229.461	2.024.588	2.951.217	3.785.774	4.618.964	4.618.964	3.672.624	4.006.499	4.196.385	4.306.152	4.529.432	4.522.373	4.697.620	4.634.498	4.729.259
38	Corsair Force Series MP600 GS 2 TB	32.384	64.351	127.012	242.703	439.517	819.641	1.358.561	2.169.404	3.054.886	3.814.097	4.385.331	4.563.402	4.507.064	4.518.220	4.540.699	4.579.558	4.563.402	4.476.010	4.429.185	4.443.242	4.407.149
39	Crucial P3 2 TB	29.749	59.136	115.748	222.274	393.951	703.856	1.154.348	1.796.224	2.236.179	2.656.219	2.938.099	3.087.007	3.189.332	3.247.737	3.280.134	3.288.998	3.297.732	3.305.361	3.314.017	3.313.604	3.322.220
40	Crucial P3 Plus 2 TB	30.336	60.420	119.035	223.878	423.133	797.643	1.383.137	2.230.976	3.018.326	4.294.967	5.037.307	5.514.886	5.676.874	5.809.424	5.928.227	5.951.717	5.979.997	5.990.968	6.009.749	6.009.749	6.009.749
41	Kingston NV2 2 TB	30.336	60.416	120.356	221.253	399.032	666.184	1.098.272	1.588.684	2.058.219	2.372.821	2.618.882	2.783.775	2.797.590	2.811.543	2.804.549	2.788.645	2.811.543	2.781.810	2.797.590	2.798.930	2.783.775
42	TeamGroup MP44 1 TB	27.392	55.923	111.140	216.146	415.949	787.349	1.253.976	2.001.684	2.903.929	3.795.168	4.563.402	5.301.600	5.704.253	6.009.749	6.143.298	6.213.008	6.225.560	6.250.865	6.009.749	6.278.997	6.276.848
44	ADATA XPG GAMMIX S70 BLADE	12.160	23.296	54.511	98.852	204.910	387.822	695.664	1.240.727	2.318.259	3.288.334	4.063.166	4.694.314	5.062.306	5.288.379	5.381.998	5.344.623	5.275.224	5.190.451	5.154.496	5.121.025	5.087.554
45	Crucial T700 2 TB	6.606	13.586	30.491	257.004	480.847	919.269	1.714.395	3.010.799	4.763.156	6.357.874	8.099.920	9.328.132	10.175.000	10.643.000	10.911.000	11.017.000	11.072.000	11.045.000	11.140.000	11.118.000	11.112.000
46	Crucial T500 2 TB	28.672	47.752	66.048	253.550	421.085	760.871	1.342.177	2.214.592	3.278.565	4.226.285	5.167.382	5.847.108	6.174.015	6.442.450	6.560.268	6.594.320	6.627.209	6.643.777	6.644.441	6.685.845	6.677.498
47	Nextorage G Series 4 TB	25.216	51.072	102.436	200.777	368.312	573.734	1.053.152	1.768.754	2.643.405	3.453.552	4.385.331	5.116.220	5.542.324	5.861.617	6.076.442	6.128.691	6.128.055	6.197.553	6.225.560	6.250.663	6.245.775
48	Kioxia Exceria Plus G3 2 TB	35.239	70.436	137.289	267.218	455.901	829.882	1.458.438	2.325.040	3.229.770	3.861.777	3.949.549	3.986.665	3.949.549	3.986.665	3.986.665	3.974.206	3.959.422	3.934.905	3.929.948	3.916.078	3.920.220
49	TeamGroup T-Create Classic 1 TB	23.493	47.360	87.881	198.234	381.694	691.568	1.157.234	1.752.452	2.357.998	2.848.502	3.271.974	3.539.074	3.693.460	3.768.675	3.768.675	3.700.123	3.711.700	3.787.393	3.739.399	3.793.469	3.796.729
50	TeamGroup T-Force Cardea A440 2 TB	34.601	68.132	132.314	262.111	387.822	706.187	1.280.060	1.990.333	3.288.334	3.994.996	5.008.124	5.661.790	6.061.445	6.375.342	6.543.948	6.663.010	6.677.498	6.696.242	6.727.538	6.417.285	6.276.848
51	Crucial T705 2 TB	5.760	11.854	25.536	243.725	454.764	872.415	1.626.996	2.860.572	4.529.061	6.542.383	8.388.608	9.840.402	10.777.000	11.341.000	11.714.000	11.844.000	11.915.000	11.972.000	11.982.000	11.928.000	11.945.000
52	TeamGroup T-FORCE Z540 2 TB	5.349	10.953	23.552	208.494	420.035	825.786	1.538.085	2.743.032	4.394.844	6.193.103	7.793.287	9.037.103	9.615.598	10.267.000	10.710.000	10.880.000	10.871.000	11.045.000	11.084.000	11.070.000	11.072.000
53	Nextorage NEM-PAB Serie 2 TB	35.712	70.948	139.849	271.507	484.933	896.991	1.533.739	2.458.923	3.422.552	4.349.629	5.221.437	5.690.028	5.979.997	6.158.618	6.261.273	6.303.914	6.343.623	6.351.075	6.375.342	6.369.513	6.375.342
54	TeamGroup T-Force G50 2 TB	9.962	23.493	102.948	211.038	412.893	787.349	1.316.028	2.029.649	3.296.379	4.092.067	4.150.373	4.150.373	4.119.554	4.129.776	4.185.998	4.148.960	4.119.554	4.131.702	4.099.260	4.111.248	4.109.382
55	Crucial P310	25.217	50.688	95.067	194.684	362.404	690.485	1.262.148	2.057.274	3.085.434	4.174.109	4.862.478	5.514.886	5.756.969	5.898.951	6.024.735	6.074.942	6.091.677	6.098.351	6.076.524	6.129.497	6.143.298
56	Crucial P510 1 TB	25.472	50.561	101.670	213.081	416.989	779.157	1.213.118	1.902.304	3.152.543	4.770.632	6.245.775	7.345.248	7.688.521	8.547.198	8.724.152	8.767.245	8.836.279	8.836.279	8.925.478	8.908.701	8.836.279
57	TeamGroup T-Force G70 Pro 2 TB	4.065	12.641	105.756	236.142	462.045	909.279	1.651.572	2.576.463	3.647.527	4.594.480	5.341.999	5.861.617	6.143.298	6.375.342	6.461.101	6.473.000	6.493.326	6.505.365	6.493.326	6.492.782	6.493.326
58	Kingston FURY Renegade G5 4 TB	35.622	71.204	139.337	263.790	508.674	961.695	1.773.165	3.128.338	4.840.404	6.876.258	8.657.043	10.283.000	11.151.000	11.714.000	12.049.000	12.180.000	12.250.000	12.318.000	12.348.000	12.381.000	12.415.000
59	Crucial T710 2 TB	34.473	67.072	135.241	260.718	486.976	955.908	1.789.508	3.111.995	4.818.219	7.027.289	8.724.152	10.175.000	11.045.000	11.609.000	11.952.000	12.080.000	12.146.000	12.218.000	12.213.000	12.275.000	12.280.000
60	Acer Predator GM7 2 TB	32.512	64.256	126.696	248.430	456.807	884.703	1.505.399	2.381.578	3.345.506	4.293.394	5.020.613	5.556.145	5.823.911	6.009.749	6.061.445	6.113.484	6.128.055	6.159.335	6.174.015	6.190.792	6.194.664
61	Acer Predator GM9 2 TB	31.026	62.720	124.452	248.832	417.992	813.498	1.474.822	2.694.003	4.250.001	6.126.493	7.460.240	8.547.198	9.059.696	9.395.240	9.596.567	9.457.580	9.663.676	9.664.680	9.639.577	9.615.598	9.730.785
62	BIWIN Black Opal NV7400 4 TB	13.696	46.336	91.966	187.465	358.238	669.515	1.133.609	1.761.214	2.615.672	3.378.744	4.407.149	4.814.689	5.448.442	5.542.324	5.809.424	5.853.245	5.905.580	5.892.789	5.913.553	5.934.627	5.942.974
63	KLEVV CRAS C925G 2 TB	16.982	42.496	85.838	142.322	237.005	419.037	755.848	1.492.779	2.241.756	2.973.720	3.570.323	4.129.776	4.429.185	4.662.650	4.807.799	4.864.977	4.886.730	4.945.740	4.953.671	4.945.740	4.966.055
	SSD	512 B	1 KB	2 KB	4 KB	8 KB	16 KB	32 KB	64 KB	128 KB	256 KB	512 KB	1 MB	2 MB	4 MB	8 MB	12 MB	16 MB	24 MB	32 MB	48 MB	64 MB

wdt_ID	SSD	Minimum (in MB/s)	Maximum (in MB/s)	Average (in MB/s)
1	Samsung SSD 960 PRO 2 TB	1.331,3	1.861,7	1.771,5
2	Samsung SSD 960 EVO 1 TB	1.365,9	1.914,5	1.736,2
3	Plextor M8SeGN 256 GB	1.125,6	1.280,7	1.245,0
4	Plextor M9PeG 512 GB	209,4	1.285,0	1.254,3
6	Samsung SSD 970 EVO 2TB	1.460,6	1.982,2	1.797,2
8	Crucial P1 500 GB	1.507,6	1.600,1	1.575,0
9	Samsung SSD 970 Evo Plus 250 GB	1.225,6	1.600,2	1.556,7
10	WD Black SN750 1TB	315,0	1.489,1	1.426,4
12	WD Blue SN550 500 GB	1.372,3	1.512,9	1.480,7
13	Corsair MP510 480 GB	863,9	1.561,9	1.492,6
14	LC-Power Phenom Pro 1 TB	1.370,8	1.472,3	1.444,7
15	Pioneer APS-SE20Q 1 TB	1.066,5	1.552,9	1.481,7
16	XPG Spectrix S40G 1 TB	1.224,0	1.384,9	1.355,4
17	Team Group Cardea IOPS 1 TB	836,2	1.496,4	1.438,3
18	Samsung SSD 980 1 TB	1.406,4	1.461,2	1.451,0
19	Crucial P5 2 TB	616,8	894,9	889,6
20	goodram IRDM M.2 500GB	1.179,0	1.960,8	1.894,0
22	TEAMGROUP MP34 1 TB	1.211,7	1.944,6	1.889,3
23	Silicon Power XD80 512 GB	1.439,0	1.995,0	1.957,3
24	Silicon Power US70 1TB	1.758,4	2.730,4	2.612,1
25	Kioxia Exceria 1 TB	1.138,5	1.829,8	1.741,2
27	Kioxia Exceria Plus 2 TB	799,4	1.695,3	1.685,5
28	Crucial P5 Plus 1 TB	916,6	1.733,5	1.719,6
29	WD_BLACK SN750 SE 1 TB	1.975,2	2.071,3	2.049,4
30	TeamGroup T-Force Cardea Ceramic C440 2 TB	682,3	2.141,9	2.109,0
31	WD Blue SN570 500 GB	1.303,4	1.418,1	1.333,0
32	Corsair Force Series MP600 Pro LPX 1 TB	977,8	2.094,2	1.945,7
33	goodram PX500 512GB	1.702,7	1.771,7	1.750,2
34	Kingston KC3000 1 TB	1.063,9	2.261,1	2.240,3
35	TeamGroup T-Force Cardea Z44L 1 TB	429,2	2.313,9	2.260,9
36	Adata Legend 840 1 TB	2.502,6	2.795,9	2.730,8
37	Silicon Power XPOWER XS70 1 TB	1.255,4	2.308,7	2.256,1
38	Kioxia Exceria Pro 2 TB	1.313,6	2.144,4	2.105,6
39	Corsair Force Series MP600 GS 2 TB	583,0	2.642,4	2.588,3
40	Crucial P3 2 TB	1.891,0	1.961,8	1.949,2
41	Crucial P3 Plus 2 TB	2.503,2	2.832,1	2.764,6
42	Kingston NV2 2 TB	1.705,1	1.986,7	1.898,7
43	ADATA XPG GAMMIX S70 BLADE	1.297,0	2.230,9	2.150,6
45	TeamGroup MP44 1 TB	2.000,3	2.138,2	2.098,0
46	Crucial T700 2 TB	2.681,6	2.743,5	2.706,7
47	Crucial T500 2 TB	2.087,8	2.406,9	2.389,1
48	Nextorage G Series 4 TB	1.224,5	2.440,8	2.365,7
49	Kioxia Exceria Plus G3 2 TB	1.441,2	2.912,8	2.846,6
50	TeamGroup T-Create Classic 1 TB	377,6	2.914,5	2.774,8
51	TeamGroup T-Force Cardea A440 2 TB	1.852,4	2.722,5	2.638,3
52	Crucial T705 2 TB	2.379,7	2.631,2	2.566,5
53	Teamgroup T-FORCE Z540 2 TB	2.171,2	2.505,1	2.469,1
58	Nextorage NEM-PAB Serie 2 TB	1.659,1	2.927,4	2.859,4
59	TeamGroup T-Force G50 2 TB	1.788,0	2.709,2	2.669,6
60	Crucial P310	2.507,3	2.618,2	2.566,5
61	Crucial P510 1 TB	1.442,4	1.736,0	1.678,1
62	TeamGroup T-Force G70 Pro 2 TB	2.660,8	2.873,0	2.816,3
63	Kingston FURY Renegade G5 4 TB	1.927,0	3.460,7	3.029,7
64	Crucial T710 2 TB	1.888,4	3.119,0	3.024,3
65	Acer Predator GM7 2 TB	1.849,7	2.156,7	2.107,2
66	Acer Predator GM9 2 TB	1.469,3	2.520,9	2.409,7
67	BIWIN Black Opal NV7400 4 TB	1.874,1	2.026,9	1.988,6
68	KLEVV CRAS C925G 2 TB	1.441,0	1.829,2	1.751,9
	SSD	Minimum (in MB/s)	Maximum (in MB/s)	Average (in MB/s)

wdt_ID	SSD	AS SSD (lesen)	AS SSD (schreiben)	HD Tune Pro
1	Samsung SSD 960 PRO 2 TB	0,220	0,373	0,018
2	Samsung SSD 960 EVO 1 TB	0,000	0,402	0,023
3	Plextor M8SeGN 256 GB	0,024	0,832	0,021
4	Plextor M9PeG 512 GB	0,020	0,592	0,018
5	Samsung SSD 970 EVO 2TB	0,032	0,349	0,018
6	Crucial P1 500 GB	0,020	0,448	0,017
7	Samsung SSD 970 Evo Plus 250 GB	0,049	0,027	0,049
8	WD Black SN750 1TB	0,030	0,024	0,034
9	WD Blue SN550 500 GB	0,028	0,585	0,021
10	Corsair MP510 480 GB	0,051	0,250	0,034
11	LC-Power Phenom Pro 1 TB		0,265	0,023
12	Pioneer APS-SE20Q 1 TB	0,032	0,271	0,033
13	XPG Spectrix S40G 1 TB		0,038	0,062
14	Team Group Cardea IOPS 1 TB		0,028	0,036
15	Samsung SSD 980 1 TB		0,299	0,028
16	Crucial P5 2 TB		0,106	0,050
17	goodram IRDM M.2 512 GB	0,024	0,018	0,027
18	TEAMGROUP MP34 1 TB	0,024	0,018	0,026
19	Silicon Power XD80 512 GB	0,024	0,016	0,024
20	Silicon Power US70 1TB	0,017	0,016	0,018
21	Kioxia Exceria 1 TB	0,025	0,022	0,025
22	Kioxia Exceria Plus 2 TB		0,022	0,028
23	Crucial P5 Plus 1 TB	0,027	0,028	0,026
24	WD_BLACK SN750 SE 1 TB	0,019	0,105	0,015
25	TeamGroup T-Force Cardea Ceramic C440 2 TB		0,022	0,023
26	WD Blue SN570 500 GB		0,027	0,024
27	Corsair Force Series MP600 Pro LPX 1 TB	0,019	0,021	0,018
28	goodram PX500 512GB	0,021	0,101	0,019
29	Kingston KC3000 1 TB		0,020	0,018
30	TeamGroup T-Force Cardea Z44L 1 TB		0,318	0,019
31	Adata Legend 840 1 TB		0,020	0,047
32	Silicon Power XPOWER XS70 1 TB		0,015	0,018
33	Kioxia Exceria Pro 2 TB		0,016	0,018
34	Corsair Force Series MP600 GS 2 TB	0,014	0,020	0,019
35	Crucial P3 2 TB	0,015	0,016	0,017
36	Crucial P3 Plus 2 TB	0,014	0,015	0,015
37	Kingston NV2 2 TB		0,132	0,023
38	ADATA XPG GAMMIX S70 BLADE	0,026	0,031	0,038
39	TeamGroup MP44 1 TB	0,021	0,047	0,025
40	Crucial T700 2 TB	0,015	0,039	0,017
41	Crucial T500 2 TB	0,022	0,017	0,028
42	Nextorage G Series 4 TB	0,023	0,020	0,035
43	Kioxia Exceria Plus G3 2 TB	0,014	0,014	0,019
44	TeamGroup T-Create Classic 1 TB	0,016	0,016	0,019
46	TeamGroup T-Force Cardea A440 2 TB	0,016	0,015	0,020
47	Crucial T705 2 TB	0,017	0,036	0,021
48	TeamGroup T-FORCE Z540 2 TB	0,018	0,039	0,030
49	Nextorage NEM-PAB Serie 2 TB	0,014	0,014	0,017
50	TeamGroup T-Force G50 2 TB	0,049	0,024	0,051
51	Crucial P310	0,015	0,018	0,016
52	Crucial P510 1 TB	0,023	0,021	0,034
53	TeamGroup T-Force G70 Pro 2 TB	0,015	0,018	0,020
54	Kingston FURY Renegade G5 4 TB	0,014	0,014	0,019
55	Crucial T710 2 TB	0,014	0,014	0,031
56	Acer Predator GM7 2 TB	0,017	0,058	0,022
57	Acer Predator GM9 2 TB	0,019	0,067	0,023
58	BIWIN Black Opal NV7400 4 TB	0,019	0,052	0,035
59	KLEVV CRAS C925G 2 TB	0,022	0,057	0,038
	SSD	AS SSD (lesen)	AS SSD (schreiben)	HD Tune Pro

The technical data already indicate that the Kingston FURY Renegade G5 with Silicon Motions SM2508 controller belongs to the PCIe 5.0 SSDs from the high-end range and could be even faster than PCIe 5.0 SSDs with Phison’s PS5026-E26 controller, such as the Crucial T700 (test) and the Crucial T705 (test). The results of the performance test confirm this. The performance is consistently very good, the SSD is the fastest SSD we have tested so far in many tests. The temperature of the SSD briefly rose to a maximum of 83 °C under load without a heat sink. There was no drop in performance. Nevertheless, we recommend using the mainboard heat sink to avoid a drop in performance.

Kingston FURY Renegade G5 test: Conclusion

The Kingston FURY Renegade G5 shows a consistently very good performance in the test and is the fastest SSD we have tested so far in many tests. In the sequential tests as well as in the 4K tests, the SSD can in some cases clearly outperform PCIe 5.0 SSDs with Phison’s PS5026-E26 controller.

The 4 TB model of the Kingston FURY Renegade G5 is currently available for €410 (as of 07.07.2025). The slightly slower Crucial T705 is available for €395. The surcharge compared to PCIe 4.0 SSDs is significantly lower than before and the surcharge compared to other PCIe 5.0 SSDs is also low. In our opinion, the price is justified and the FURY Renegade G5 is particularly recommended for enthusiasts looking for maximum performance. According to the technical data, similarly fast SSDs with Silicon Motion’s SM2508 controller such as the recently introduced Crucial T710 can be an alternative, depending on the price.

VORTEILE

Performance (overall)
Price-performance ratio

NACHTEILE

Detailbewertung

Access times 97

Transfer rate (read) 97

Transfer rate (write) 97

Price-performance ratio 88

Fazit

PCIe 5.0 SSDs from the high-end sector with consistently very good performance. The surcharge compared to PCIe 4.0 SSDs is significantly lower than before and the price is justified.
